Front Armature - V8 S/C 5.0L Petrol (G2263080): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
With assistance, remove the front bumper.
Refer to: FRONT BUMPER - V8 S/C 5.0L PETROL .
Remove the left air filter housing.
Refer to: the appropriate Intake Air Distribution and Filtering article for the procedure.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

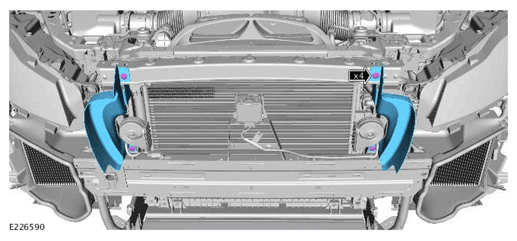

- Remove the 4 fasteners.
- Remove the cooling module 2 side panels.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

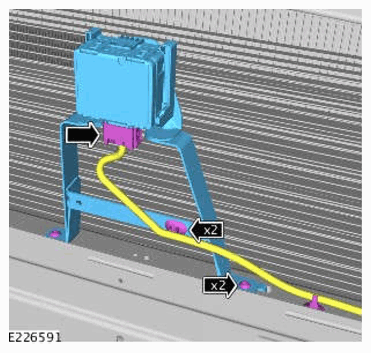

- Disconnect the electrical connector.
- Release the wiring harness at 2 clips.

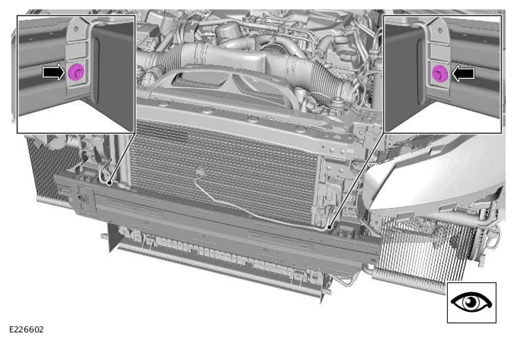

- Remove the 2 bolts.
- Remove the Adaptive Speed Control Module (ASCM).
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

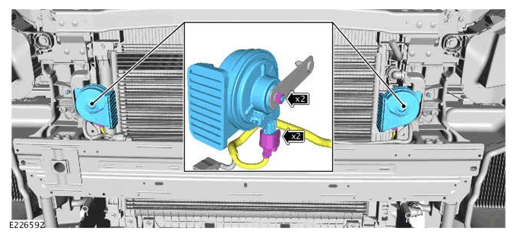

- Disconnect the 2 electrical connectors.
- Remove the 2 nuts.
- Remove the 2 horn assemblies.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

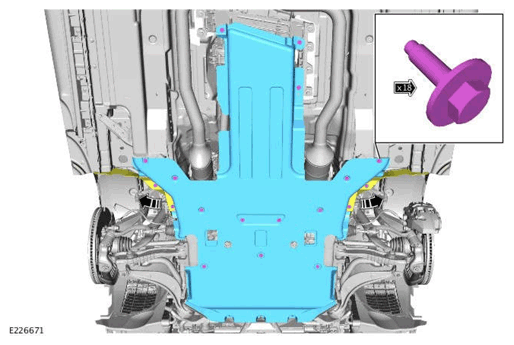

- Remove the 18 screws.
- Remove the engine undershield.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 4 bolts.
- Remove the cooling module protector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

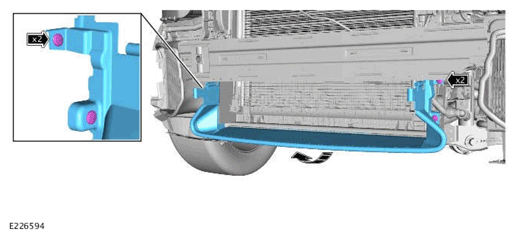

- Remove the 4 fasteners.
- Remove the radiator lower panel.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

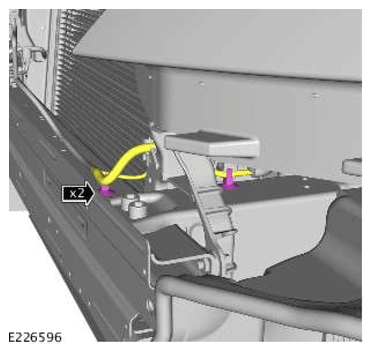

Release the wiring harness at 3 clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

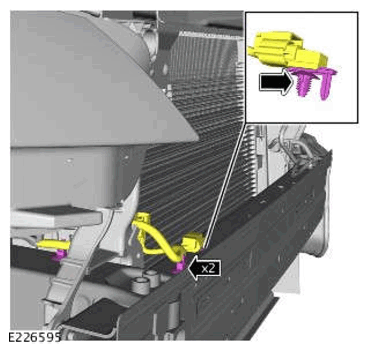

Release the wiring harness at 2 clips.
CAUTION: Take extra care not to damage the component.

NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

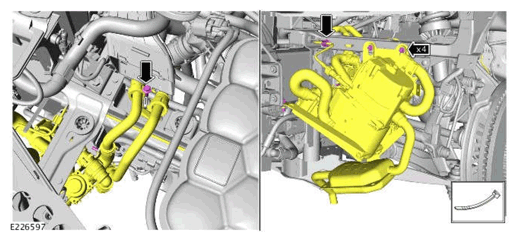

- Remove the 5 bolts.
- Release the fuel pipe from the clip.
- Release and secure Fuel Fired Booster Heater (FFBH) assembly.
NOTE:
- Discard the bolts.
- Fuel Fired Booster Heater (FFBH) shown removed for clarity.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

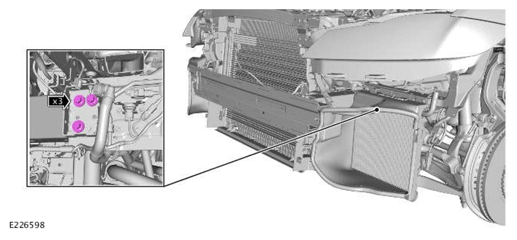

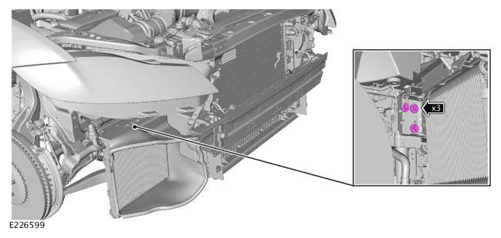

Remove the 3 bolts on the left side of the front armature.
NOTE: Discard the bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 3 bolts on the right side of the front armature.
NOTE: Take extra care when releasing the clips.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

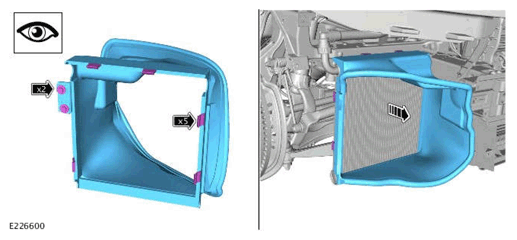

- Remove the 2 bolts.
- Remove the auxiliary radiator duct.
NOTE: Discard the bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

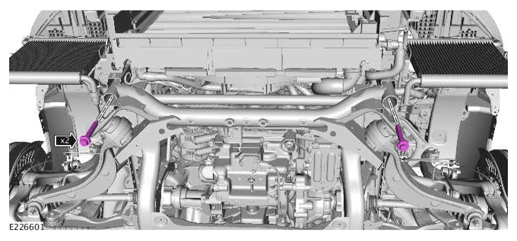

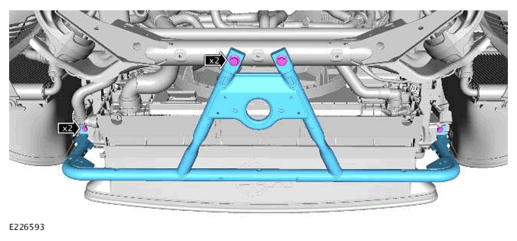

Remove the 2 bolts from the front subframe.
NOTE: Discard the bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 inside bolts from the front armature.
NOTE: Discard the bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

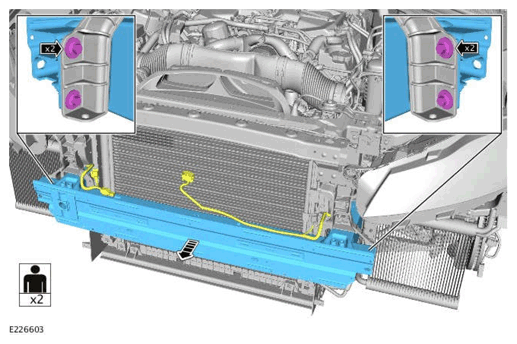

- Remove the 4 bolts.
- Remove the front armature.
