Upper Arm - INGENIUM I4 2.0L Diesel/INGENIUM I4 2.0L Petrol/TDV6 3.0L Diesel/V6 S/C 3.0L Petrol (G1899815): Removal

CAUTION: Nuts and bolts must be tightened with vehicle at normal ride height

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Before replacing the Upper Arm, make sure to have followed the diagnosis and testing procedure. Refer to: SUSPENSION ARMS
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the rear wheel tire.
Refer to: WHEEL AND TIRE - INGENIUM I4 2.0L DIESEL/INGENIUM I4 2.0L PETROL/TDV6 3.0L DIESEL/V6 S/C 3.0L RETROL (G1967109)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using a suitable hydraulic stand, support the lower arm.
CAUTION: Discard the nuts and bolts.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

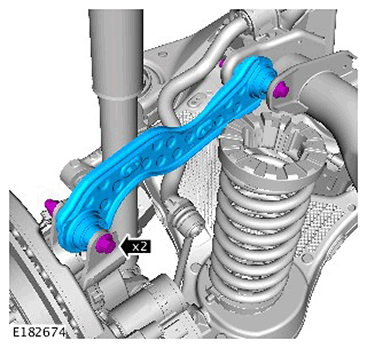

Remove the upper arm.
