Spring - Vs S/C 5.0L Petrol (G2263804): Installation

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

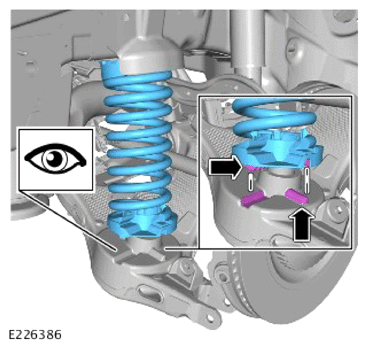

Install the coil spring.

1. Using the suitable equipment carefully lift the rear lower control arm.

   General Equipment: Transmission jack

   • Install the new rear lower control arm nut to the wheel knuckle.

     Renew Part: Rear lower control arm nut and bolt  Quantity: 1  .

   • Install and tighten the rear lower control arm nut bracket bolt.

     Torque: 5 Nm

   • Install and tighten the new rear lower control arm bolt to the wheel knuckle.

     Torque

     Stage 1: 110 Nm

     Stage 2: 60°

• Install the stabilizer bar link.
• Install and tighten the new stabilizer bar link nut.

  Renew Part: Stabilizer bar link retaining nut(s)  Quantity: 1  .

  Torque

  Stage 1: 40 Nm

  Stage 2: 45°

• Install the 2 integral links.
• Install and tighten the 2 new integral link nuts and bolts.

  Renew Part: Integral link nuts and bolts  Quantity: 2  .

  Torque

  Stage 1: 48 Nm

  Stage 2: 60°

• Secure the wheel speed sensor wiring harness to the lower control arm.

• Install and tighten the new tie-rod nut and bolt to the wheel knuckle.

  Renew Part: Tie-rod nut and bolt  Quantity: 1

  Torque

  Stage 1: 80 Nm

  Stage 2: 60°

• Install and tighten the new shock absorber nut and bolt to the wheel knuckle.

  Renew Part: Shock absorber nut and bolt  Quantity: 1  .

  Torque: 170 Nm

• Install the suspension height sensor link to the lower control arm.

• Remove the Jaguar Land Rover (JLR) approved equipment supporting the rear suspension.

  General Equipment: Transmission jack

• Install the wheel and tire.

  Refer to: WHEEL AND TIRE - V8 S/C 5.0L PETROL

Using the JLR approved 4 wheel alignment equipment, check the wheel alignment and adjust if required.

Refer to: WHEEL ALIGNMENT
