Rear Stabilizer Bar Link - V8 S/C 5.0L Petrol (G2263549): Removal
CAUTION:
Use a wrench on the hexagon provided to prevent the ball joint rotating.
NOTE:
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations for left side components, right side components are similar.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING (
- Remove the rear wheel and tire for access.
Refer to: WHEEL AND TIRE - V8 S/C 5.0L PETROL

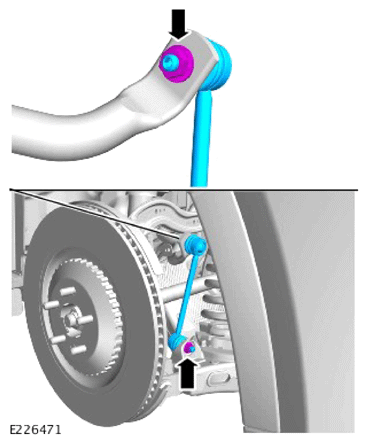

Remove and discard the 2 nuts of the rear stabilizer bar link.
