Rear Shock Absorber - V8 S/C 5.0L Petrol (G2263803): Removal

CAUTION: Nuts and bolts must be tightened with vehicle at normal ride height.

NOTE:

This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains illustrations for right side components, left side components are similar.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the wheel and tire assembly.
Refer to: WHEEL AND TIRE - V8 S/C 5.0L PETROL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

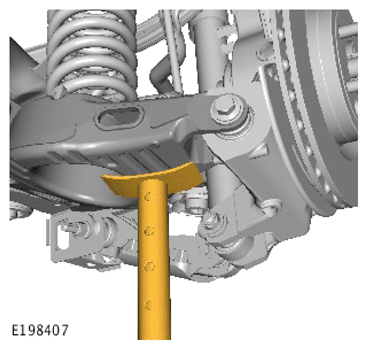

Using the Jaguar Land Rover (JLR) approved equipment, support the rear suspension.

General Equipment: Transmission jack
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

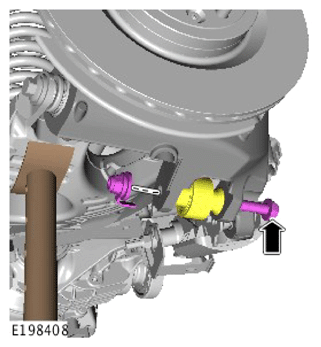

Remove and discard the shock absorber nut and bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

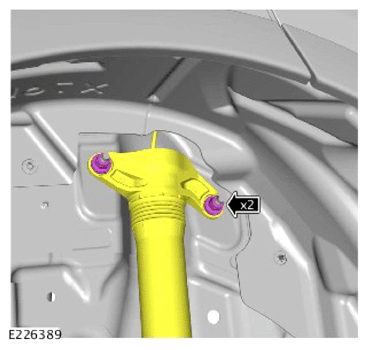

- Remove and discard the 2 shock absorber upper nuts.
- Release the shock absorber.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

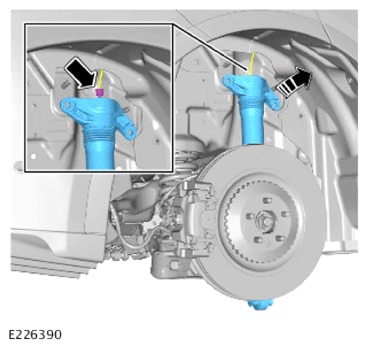

- Disconnect the electrical connector.
- Remove the shock absorber.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

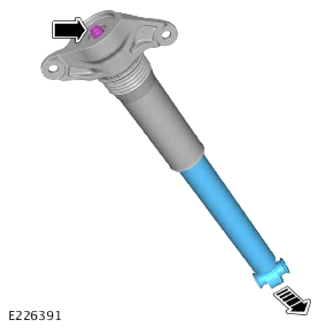

- Remove and discard the shock absorber top nut.
- Remove the shock absorber from the top mount.

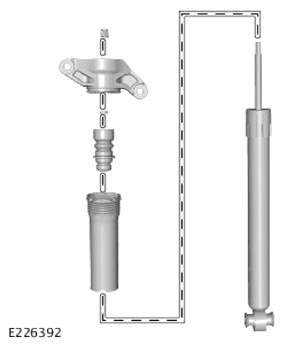

NOTE: Note the position of the components prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Inspect the components and renew if damaged or worn.
