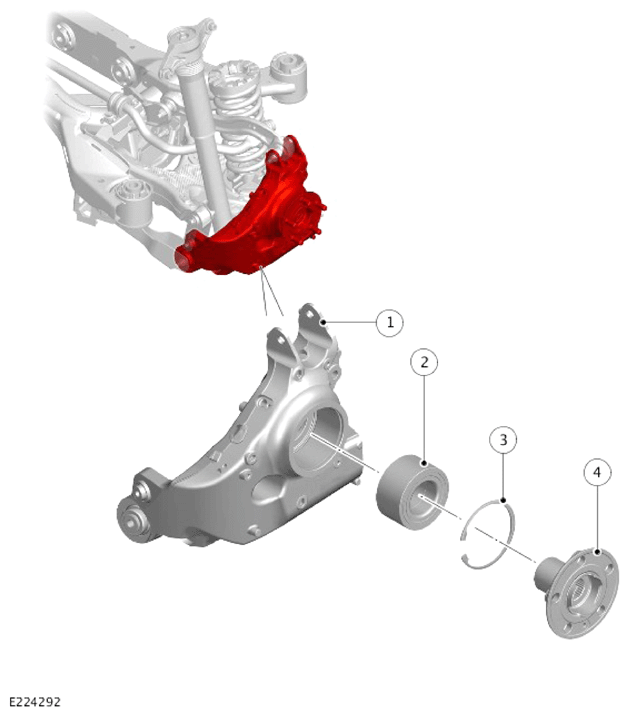

Wheel Knuckle, Wheel Hub And Wheel Bearing Assembly
| ITEM | DESCRIPTION |
|---|---|
| 1 | Wheel knuckle |
| 2 | Wheel bearing |
| 3 | Circlip |
| 4 | Wheel hub |
The rear wheel knuckle is an aluminum casting. The wheel knuckle provides for the attachment of the rear upper and lower control arms and the tie-rod. The rear wheel knuckle also provides the mounting locations for the wheel hub and wheel bearing assembly.
A wheel bearing is pressed into the wheel knuckle with a circlip added to secure it. The wheel hub is pressed into the wheel bearing.
