Oil Cooler - INGENIUM I4 2.0L Diesel - High Power (G1917548): Removal
WARNING: This page is about a different car, the 2019 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Removal steps in this procedure may contain installation details.
- Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
-
WARNING: Do not work on or under a vehicle supported only by a jack. Always support the vehicle on safety stands.
Raise and support the vehicle.
- Refer to: EXHAUST MANIFOLD - INGENIUM I4 2.0L DIESEL - HIGH POWER .
-
CAUTION: Be prepared to collect escaping coolant.
-
CAUTION: Be prepared to collect escaping fluids.

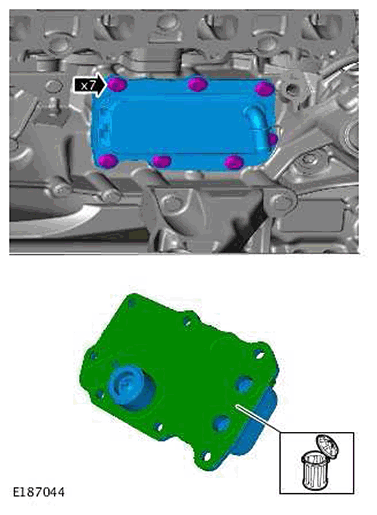

NOTE:
Remove and discard the gasket.
