Oil Cooler - INGENIUM I4 2.0L Diesel - High Power (G1917548): Installation
WARNING: This page is about a different car, the 2019 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.
- CAUTION: Install a new gasket.

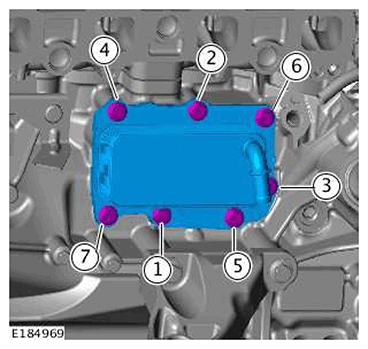

Tighten the bolts evenly in 2 stages to the sequence shown.
Renew Part: Oil cooler gasket Quantity: 1 .
Torque
Stage 1: 15 Nm
Stage 2: 25 Nm
- Refer to: EXHAUST MANIFOLD - INGENIUM I4 2.0L DIESEL - HIGH POWER .
- Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
- Check and top up coolant level.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING .
