Lower Timing Cover (G1867930): Installation

WARNING: This page is about a different car, the 2019 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Make sure the locating dowels are positioned as shown in the illustration. Failure to position the dowels as shown in the illustration may result in engine damage.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using a suitable tool, position the dowels as shown in the illustration.
CAUTION:
- Make sure that the mating faces are clean and free of foreign material.
- The lower timing cover must be installed within 7 minutes of applying the RTV sealant.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

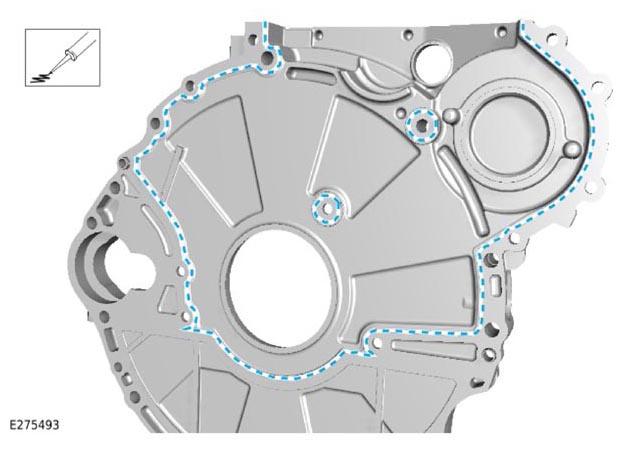

Apply a 3 mm diameter bead of sealant, to the area shown.

Refer to: SPECIFICATIONS .
CAUTION:
- Take care not to damage the cylinder head gasket when installing the lower timing cover.
- Make sure the dowels are correctly located.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

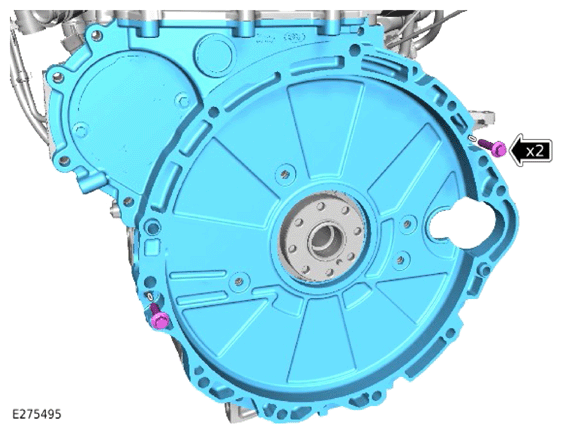

- Install and tighten the 2 lower timing cover bolts.
  Torque : 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

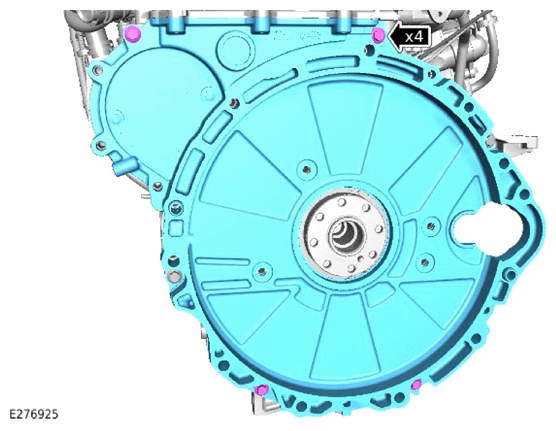

- Install and tighten the 4 lower timing cover bolts.
  Torque : 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

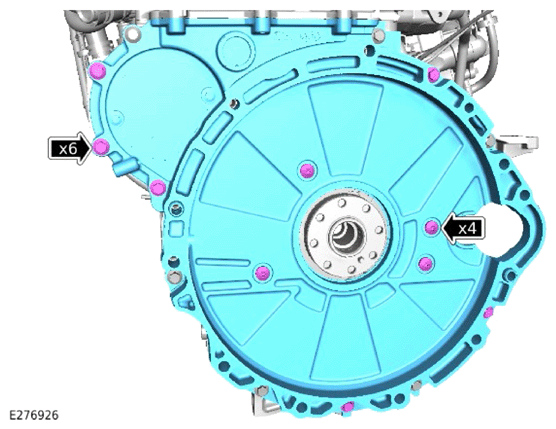

Install and tighten the remaining 10 bolts.

Torque

M8 x 35 bolts: 25 Nm

M8 x 25 bolts: 25 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install and tighten the 3 bolts.
  Torque : 12 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install and tighten the bolt.
  Torque : 13 Nm
Install the coolant pipes and tighten the bolt to the correct torque.
Torque : 10 Nm
Install the rear crankshaft oil seal.
Refer to: CRANKSHAFT REAR SEAL .
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
