Left Engine Mount (G1914828): Removal

WARNING: This page is about a different car, the 2019 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
Some components shown removed for clarity.
Removal steps in this procedure may contain installation details.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD - INGENIUM I4 2.0L DIESEL/INGENIUM I4 2.0L PETROL/TDV6 3.0L DIESEL/V6 S/C 3.0L PETROL .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

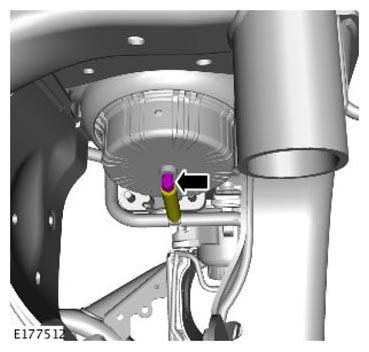

Release the vacuum pipe and reposition away from the engine mount assembly.
Remove the thermostat for access.
Refer to: THERMOSTAT .

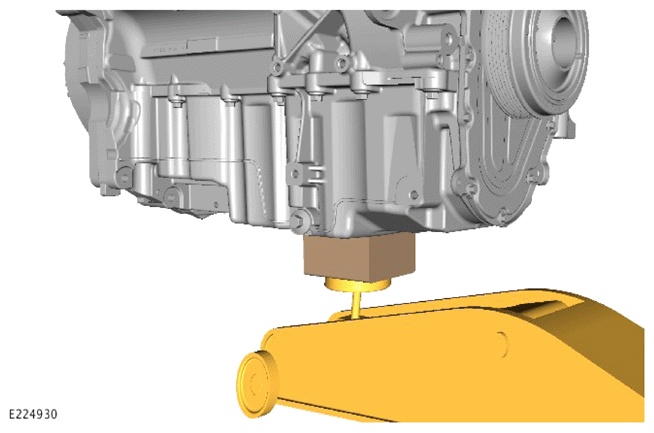

CAUTION: Use a suitable 100 mm X 100 mm block of wood to support the engine.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using a suitable hydraulic jack support the engine as highlighted in the illustration.

General Equipment: Hydraulic floor jacks (2 tonnes minimum capacity)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

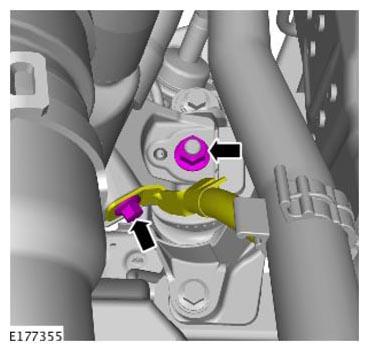

- Remove the engine mount nut.
- Release the ground cable and reposition away from the engine mount.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

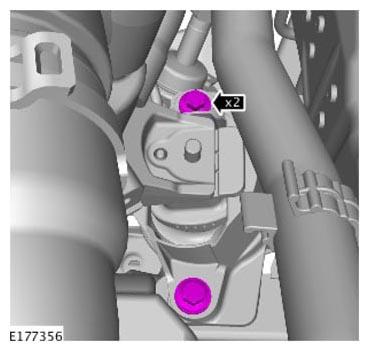

Remove the 2 engine mount retaining bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

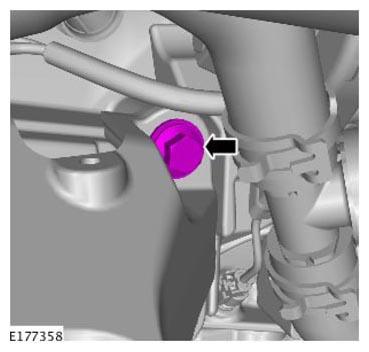

Remove the upper engine mount bracket bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

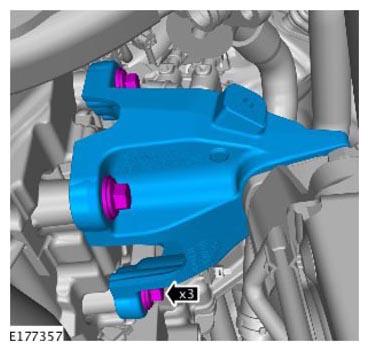

Release the 3 remaining engine mount bracket bolts and remove the engine mount bracket.
NOTE: Note the fitted position of the component prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

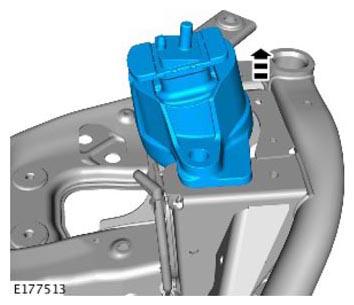

Remove the engine mount from the vehicle.
