Left Engine Mount (G1914828): Installation

The following step(s) applies to:

All vehicles

1. NOTE: Make sure that the component is installed to the noted position in the removal steps.

   Install the engine mount in the correct position.

2. Install the engine mount bracket and tighten the 4 bolts to the correct torque.

   Torque  : 60 Nm

3. Install the 2 engine mount retaining bolts and tighten to the correct torque.

   Torque  : 47 Nm

4. • Install the left engine mount nut finger tight at this stage.
   • Install the ground cable.

     Torque  : 20 Nm

5. Remove the hydraulic jack from under the vehicle.

   General Equipment: Hydraulic floor jacks (2 tonnes minimum capacity)

6. Install the vacuum pipe onto the engine mount assembly.
7. Install the thermostat.

   Refer to: THERMOSTAT .

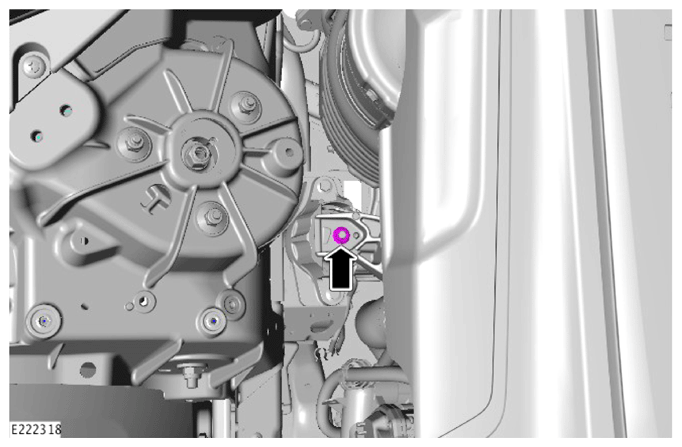

8. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Loosen the right engine mount nut.

9. Raise the vehicle on the ramp.

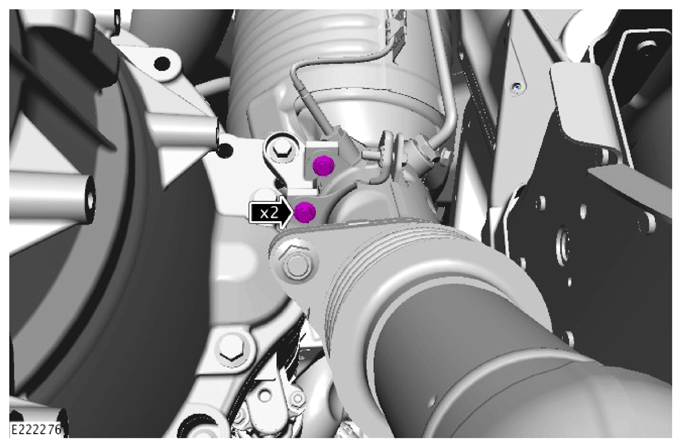

10. WARNING: Observe due care when working near a hot exhaust system.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Loosen the Diesel Particulate Filter (DPF) fasteners.

    The following step(s) applies to:

    Vehicles with All Wheel Drive (AWD)

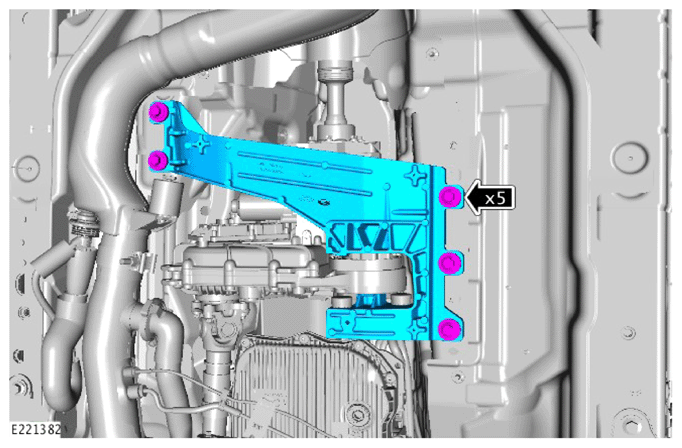

11. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Loosen the transmission mount fasteners.

    The following step(s) applies to:

    Vehicles with Rear Wheel Drive (RWD)

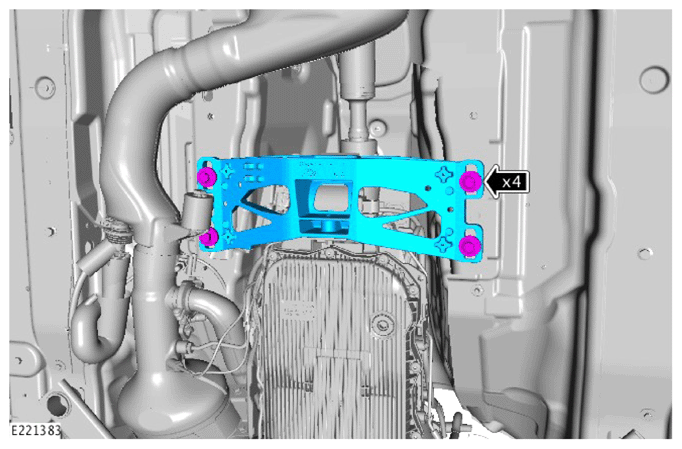

12. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Loosen the transmission mount fasteners.

    The following step(s) applies to:

    All vehicles

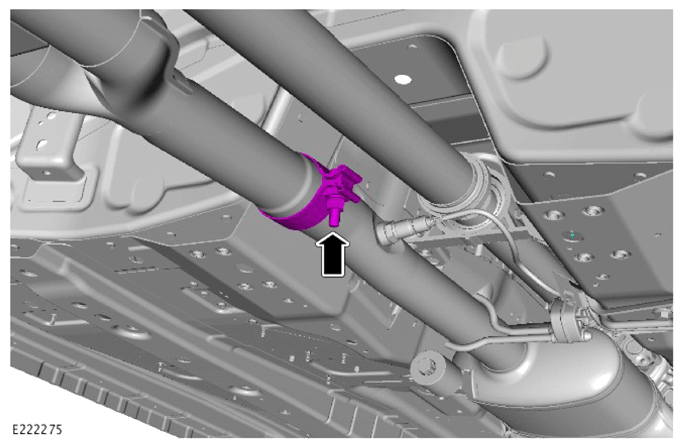

13. WARNING: Observe due care when working near a hot exhaust system.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Loosen the exhaust clamp.

14. Lower the vehicle on the ramp.
15. • To align the exhaust, follow the steps below.
    • Start and stop the engine 4 times.
    • Start the engine.
    • Raise the engine Revolutions Per Minute (RPM) to between 3000 RPM and 4000 RPM - Repeat this 5 times.
    • Stop the engine.
    • Start and stop the engine 5 times.

16. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Tighten the right engine mount nut.

    Torque  : 60 Nm

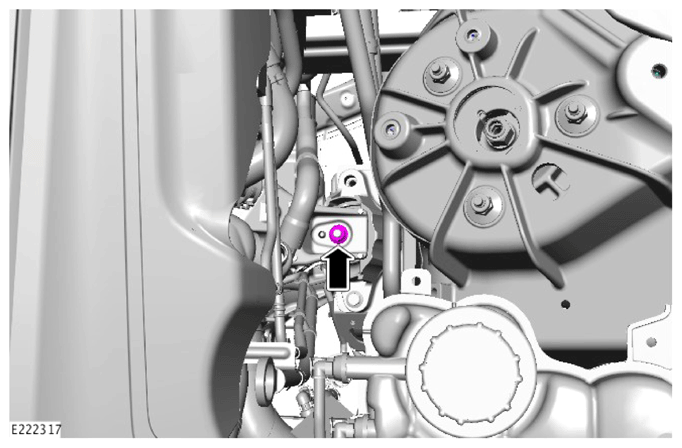

17. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Tighten the left engine mount nut.

    Torque  : 60 Nm

18. Raise the vehicle on the ramp.

    The following step(s) applies to:

    Vehicles with All Wheel Drive (AWD)

19. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Tighten the transmission mount fasteners.

    Torque  : 60 Nm

    The following step(s) applies to:

    Vehicles with Rear Wheel Drive (RWD)

20. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Tighten the transmission mount fasteners.

    Torque  : 60 Nm

    The following step(s) applies to:

    All vehicles

21. WARNING: Observe due care when working near a hot exhaust system.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Tighten the DPF  fasteners.

    Torque  : 25 Nm

22. WARNING: Observe due care when working near a hot exhaust system.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Tighten the exhaust clamp.

    Torque  : 55 Nm

23. Install the engine undershield.

    Refer to: ENGINE UNDERSHIELD - INGENIUM I4 2.0L DIESEL/INGENIUM I4 2.0L PETROL/TDV6 3.0L DIESEL/V6 S/C 3.0L PETROL .
