Camshafts (G1817149): Installation

WARNING: This page is about a different car, the 2019 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure that these components are installed to the noted removal position.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the camshafts.
- Install the camshaft bearing caps. Tighten the bolts finger tight before final tightening in sequence illustrated.
  Torque : 11 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using the special tool align the camshafts.

Special Tool(s): JLR-303-1625
CAUTION: Install and finger tighten bolts before final tightening in sequence illustrated.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the valve cover. Make sure a new gasket is installed.

Renew Part: Camshaft cover gasket Quantity: 1 .

Torque

M8 x 80

Stage 1: 15 Nm

Stage 2: 45°

M8 x 40: 25 Nm
Install the crankcase breather.
Install the cylinder head temperature sensor electrical connector bracket.
Torque : 12 Nm
Install the wiring harness and connect the 2 electrical connectors.
Install the Noise, Vibration and Harshness (NVH) material.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the camshaft gear and bolt finger tight.

Renew Part: Variable camshaft timing actuator bolts Quantity: 1 .
CAUTION: Use 2 suitable M6 X 20 bolts to install the special tool to the cylinder head.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

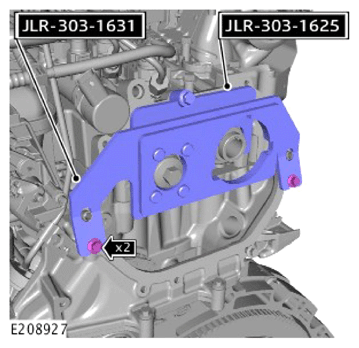

Install the special tool.

Special Tool(s): JLR-303-1631
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Fully tighten the camshaft gear bolt and remove the special tool.

Special Tool(s): JLR-303-1631

Torque

Stage 1: 80 Nm

Stage 2: 90°
Install the upper timing chain.
Refer to: UPPER TIMING CHAIN .
Install the fuel injectors.
Refer to: FUEL INJECTORS .
Install the fuel rail.
Refer to: FUEL RAIL .
