Replacement Engine - Balance Shaft Assembly (G2519814): Disconnection

WARNING: This page is about a different car, the 2019 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

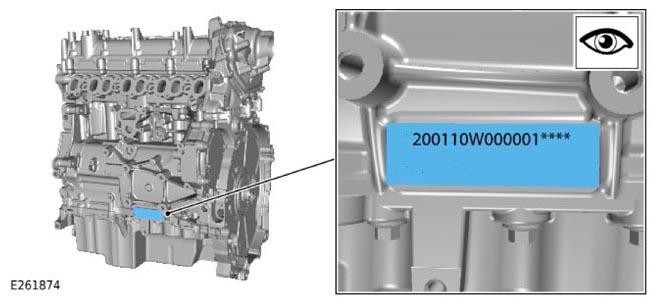

NOTE: The engine number label is in yy/mm/dd format, represented by the first 6 digits. For example, the first 6 digits in the illustration shows 200110. This represents 10th January 2020.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

This procedure is only required for engine numbers before 200110W000001*** (10th January 2020). For engine numbers after 200110W000001**** (10th January 2020) this procedure is not required.
CAUTION: Failure to follow this step may result in damage to the crankshaft rear oil seal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

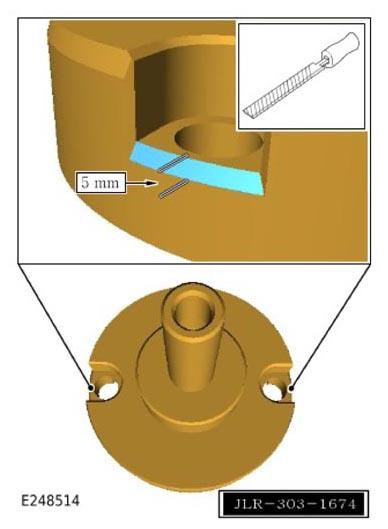

The existing special tool JLR-303-1674 must be modified as illustrated before use.

Special Tool(s): JLR-303-1674A

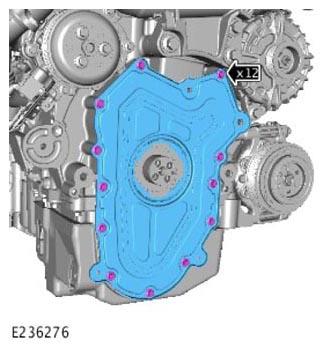

NOTE: Non Mild Hybrid Electric Vehicle (MHEV) vehicles only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 12 bolts.
- Remove the lower front engine cover.

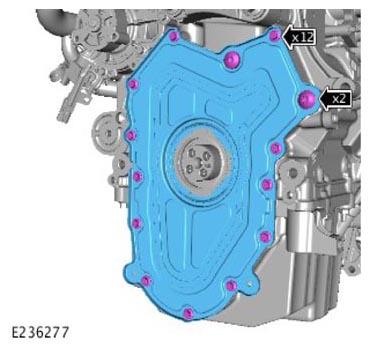

NOTE: MHEV vehicles only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 Torx® bolts.
- Remove the 12 bolts.
- Remove the lower front engine cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

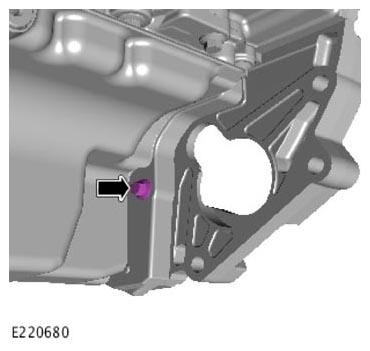

Remove the bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

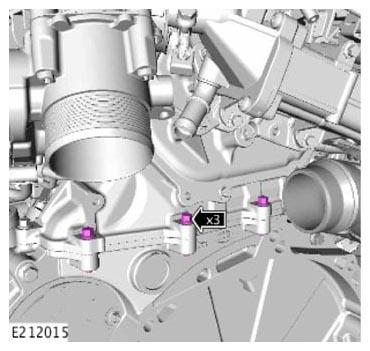

Remove the 3 bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the bolt.
CAUTION: Note the installed position of the component(s) prior to removal.

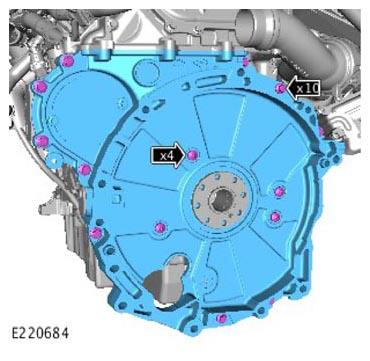

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 4 Torx bolts.
- Remove the 10 bolts.
- Remove the lower timing cover.
NOTE: The crankshaft may require rotating to correctly position the special tool.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

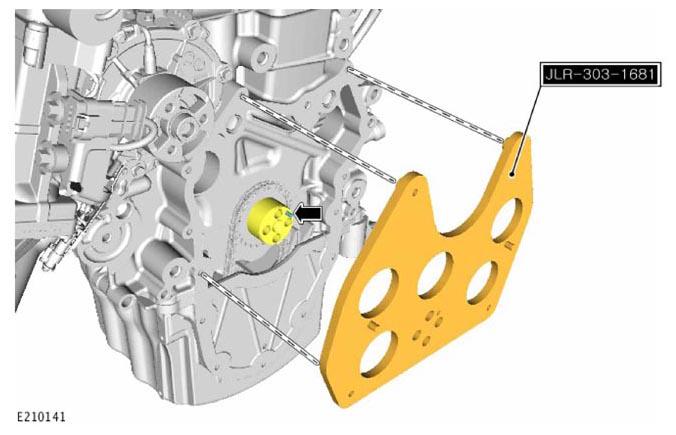

Install the special tool end plate to the front of the engine. Make sure the crankshaft pin aligns correctly.

Special Tool(s): JLR-303-1681
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

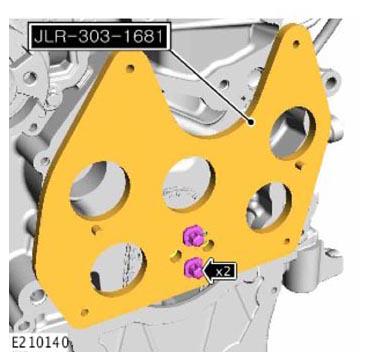

Install the 2 bolts into the crankshaft finger tight at this stage. A small amount of crankshaft movement may be required in other steps to assist the installation of the balance shaft alignment tools.

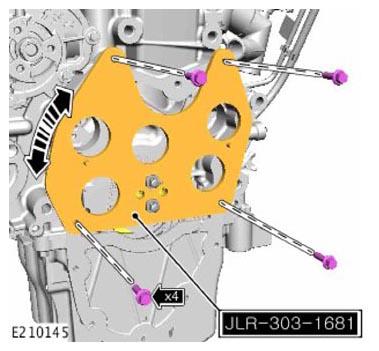

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Carefully rotate the end plate to align the bolt holes.
- Install and tighten the 4 bolts.
  Torque : 10 Nm
CAUTION: The crankshaft will only require small movements, do not over rotate.

NOTE: If the alignment tool will not correctly locate in the rear of the balance shaft, carefully rotate the crankshaft a small amount at the driveplate/flywheel end of the engine until the alignment tool can be fully installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

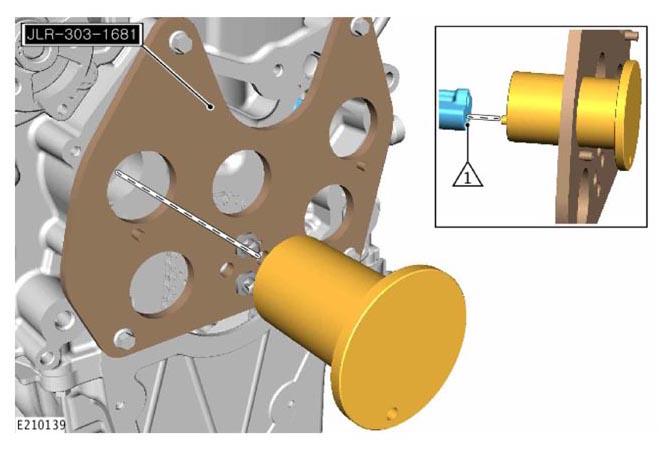

Install the balance shaft alignment tool. Rotate the tool carefully to align with the balance shaft hole (1).

Special Tool(s): JLR-303-1681
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

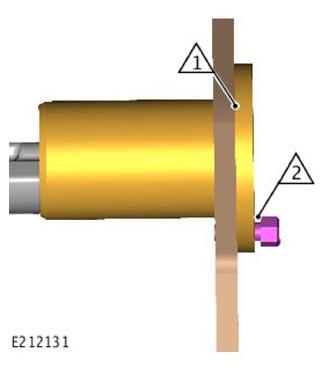

- Make sure the balance shaft alignment tool and bolt are installed correctly.
- The alignment tool must touch the end plate with no gap (1).
- The alignment tool bolt must be installed into the end plate until it stops. There will be a gap of approximately 2.5 mm (2).
- Install the bolt finger tight.

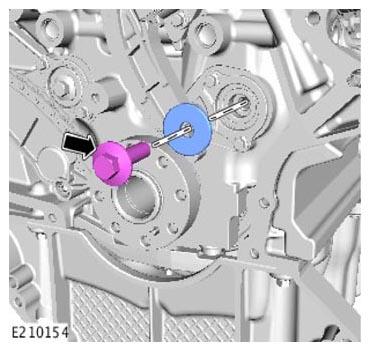

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the bolt.
- Remove the washer.
CAUTION: Install the special tool finger tight only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

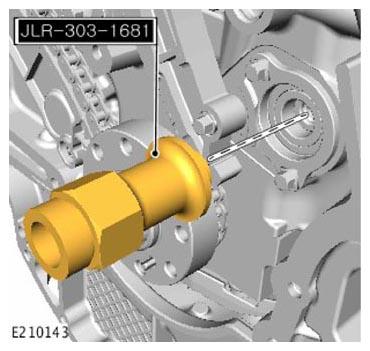

Carefully install the balance shaft gear retaining tool finger tight.

Special Tool(s): JLR-303-1681
CAUTION: Install the special tool finger tight only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

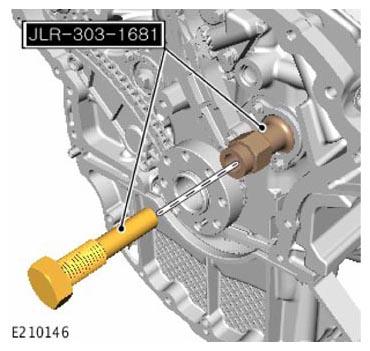

Install the release bolt into the balance shaft gear retaining tool finger tight at this stage.

Special Tool(s): JLR-303-1681
CAUTION: Do not rotate the bolt without countering the adapter direction. Failure to follow this instruction may result in damage to the vehicle.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

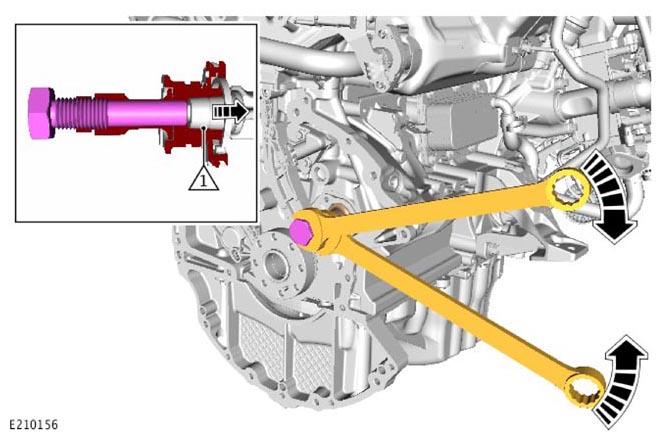

- Use suitable tools to rotate the release bolt clockwise and the balance shaft gear retaining tool counter clockwise in one action to release the balance shaft from the gear taper (1).
- Do not continue to rotate the release bolt when the balance shaft has been released from the taper.
CAUTION: The balance shaft gear retainer must remain on the engine.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the release bolt, but do not remove the balance shaft gear retainer.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

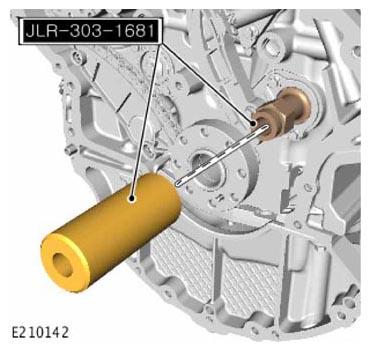

Install the extension tool to the balance shaft gear retainer.

Special Tool(s): JLR-303-1681
CAUTION: Do not over tighten the guide.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

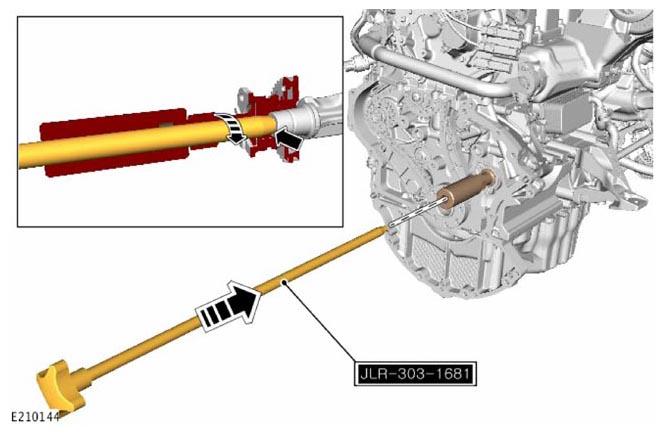

- Install the balance shaft guide through the extension tool.
  Special Tool(s): JLR-303-1681
- Carefully install the guide into the end of the balance shaft finger tight.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

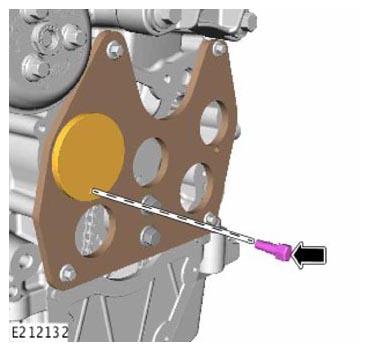

Remove the bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

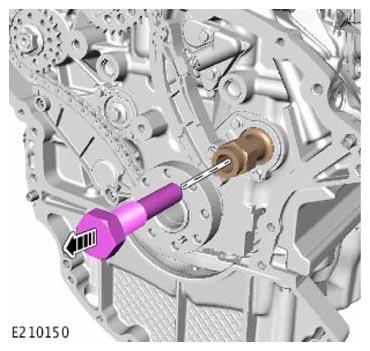

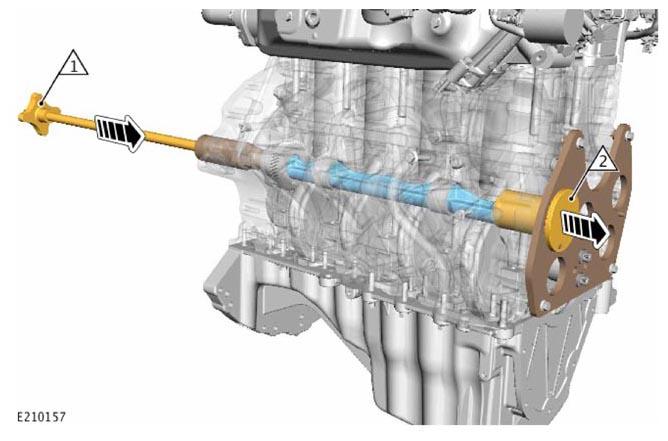

Supporting points (1) and (2) in the illustration by hand, carefully slide the complete balance shaft assembly through the engine until the alignment tool (2) is free from the end plate.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the balance shaft alignment tool.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

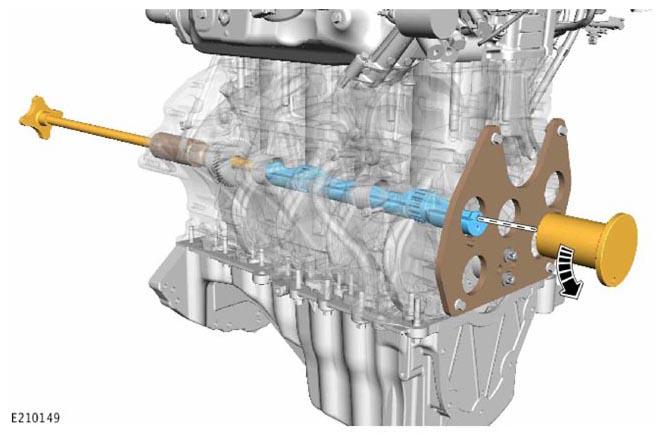

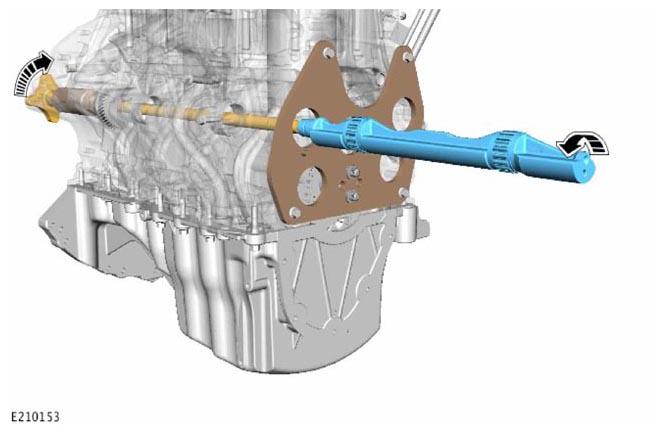

Holding the balance shaft end, carefully slide the complete assembly through the engine to remove the balance shaft.
Rotate the balance shaft in the direction illustrated.
Remove the balance shaft.
