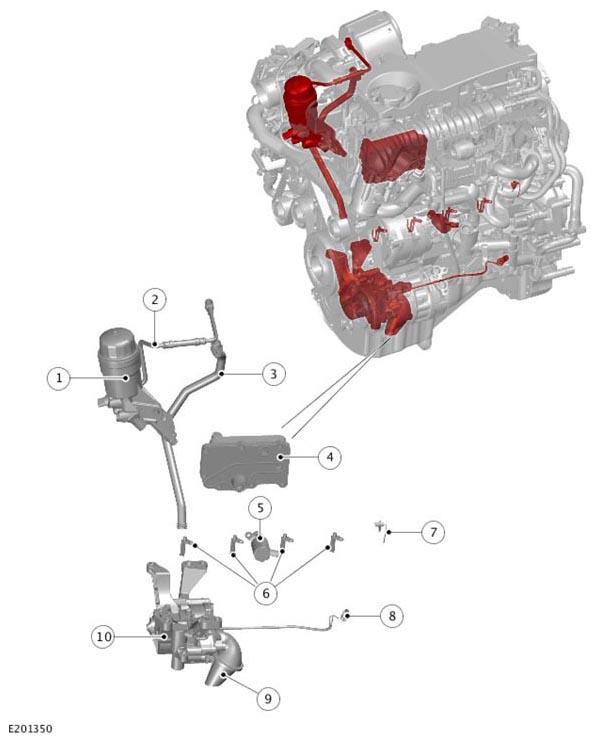

Lubrication System - INGENIUM I4 2.0L Diesel 163 PS And 180 PS
| ITEM | DESCRIPTION |
|---|---|
| 1 | Oil filter and housing assembly |
| 2 | Oil feed pipe - Turbocharger |
| 3 | Oil drain pipe - Turbocharger |
| 4 | Engine oil cooler |
| 5 | Piston cooling oil jets solenoid |
| 6 | Piston cooling oil jet (4 off) |
| 7 | Primary chain oil jet |
| 8 | Variable flow oil pump solenoid electrical connector |
| 9 | Variable flow oil pump inlet pipe |
| 10 | Variable flow oil pump with integral vacuum pump |

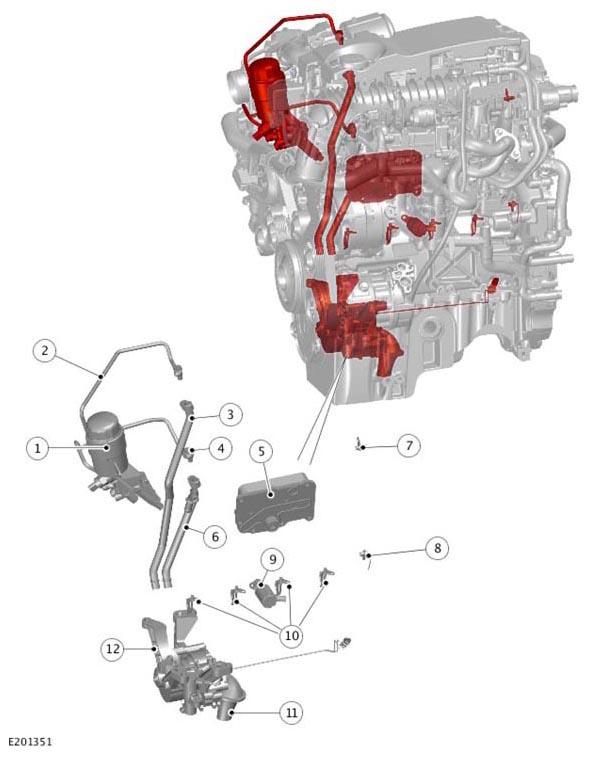

Lubrication System - INGENIUM I4 2.0L Diesel 240 PS
| ITEM | DESCRIPTION |
|---|---|
| 1 | Oil filter and housing assembly |
| 2 | Oil feed pipe - Low Pressure (LP) turbocharger |
| 3 | Oil drain pipe - LP turbocharger |
| 4 | Oil feed pipe - High Pressure (HP) turbocharger |
| 5 | Engine oil cooler |
| 6 | Oil drain pipe - HP turbocharger |
| 7 | Secondary chain oil jet |
| 8 | Primary chain oil jet |
| 9 | Piston cooling oil jet solenoid |
| 10 | Piston cooling oil jet (4 off) |
| 11 | Variable flow oil pump inlet pipe |
| 12 | Variable flow oil pump with integral vacuum pump |
