Lower Timing Cover (G2498217): Removal

WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

If the vehicle has been powered down, do not power up the vehicle until all the bonding points have been tested.
It is the responsibility of the Electric Vehicle Senior Authorized Person (EVSAP) to make sure they comply with any local legislation for work on High Voltage (HV).
The approved Personal Protective Equipment (PPE) must be worn where indicated within this procedure and not removed unless indicated within a step. All items of PPE must be checked for signs of damage before each use, if damaged, replacement PPE must be obtained before doing this procedure.

NOTE:

All Permit To Work (PTW) documents must be kept for a minimum of 5 years.
This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

The following step(s) applies to:

All vehicles

Raise and support the vehicle on a suitable 2-post lift.
Refer to: LIFTING

The following step(s) applies to:

Plug in hybrid electric vehicles only
WARNING: Jaguar Land Rover (JLR) Electric Vehicle Competent Person (EVCP) trained technicians only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

This procedure involves work on components associated with the HV system. Only technicians qualified to EVCP level or higher are allowed to do this procedure. It is mandated that all technicians involved with the steps in this procedure have read and understood the Electric Vehicle (EV) Safety Rules.

Refer to: ELECTRIC VEHICLE SAFETY RULES
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Power Down the HV system. Only technicians qualified to Electric Vehicle Authorized Person (EVAP) level are allowed to perform this procedure. It is mandated that all technicians involved with the steps in this procedure have read and understood the EV Safety Rules.

Refer to: PHEV POWER DOWN/UP - COMPLETE VEHICLE - PATHFINDER
Refer to high voltage electrical connector operation and inspection document before disconnecting any high voltage electrical connectors.
Refer to: GENERAL PROCEDURES

The following step(s) applies to:

All vehicles
Disconnect the 12V system.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the crankshaft rear oil seal.
Refer to: CRANKSHAFT REAR SEAL (G2498209)
Remove the Crankshaft Position Sensor (CKP).
Refer to: CRANKSHAFT POSITION SENSOR (G1998396)
CAUTION: Note the position of the bolts prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

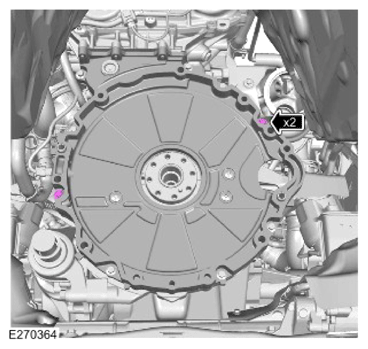

Remove the 2 dowel locating bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

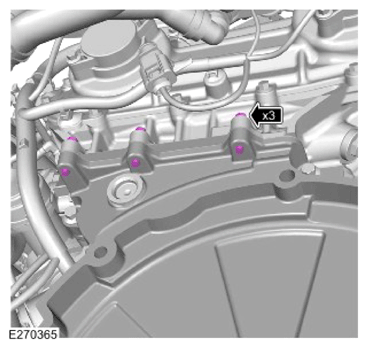

Remove the 3 lower timing cover upper bolts.
CAUTION:
- Note the position of the bolts prior to removal.
- Be prepared to collect escaping oil.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

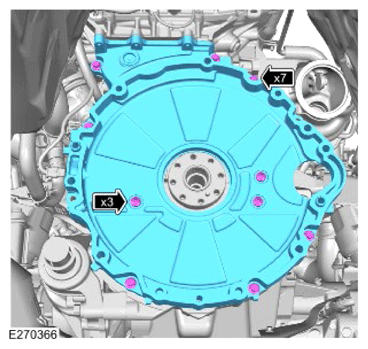

- Remove the 7 remaining bolts.
- Remove the 3 Torx bolts.
- Remove the lower timing cover.
CAUTION: Make sure the component is clean and free from any contamination

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

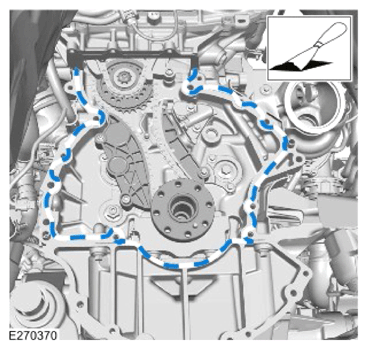

With a suitable plastic scraper clean the RTV sealant from the cylinder block and the oil pan mating surface.
CAUTION: Make sure the component is clean and free from any contamination

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

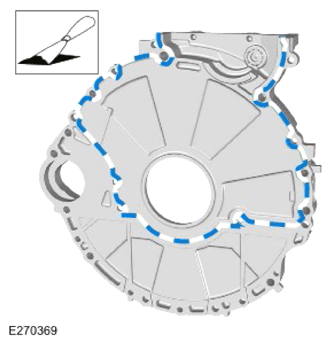

With a suitable plastic scraper clean the RTV sealant from the lower timing cover.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

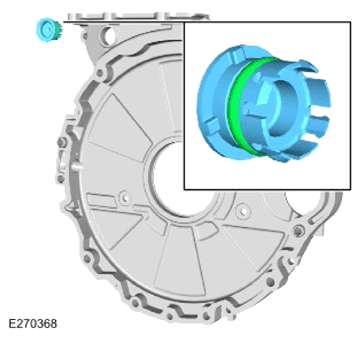

Remove and discard the drive chain cap.
