Engine Front Cover - Vehicles With: PHEV (G2756532): Removal

WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the 12V system.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Raise and support the vehicle on a suitable 2-post lift.
Refer to: LIFTING
Drain the engine oil.
Refer to: ENGINE OIL VACUUM DRAINING AND FILLING (G1997675)
Remove the crankshaft pulley.
Refer to: CRANKSHAFT PULLEY - VEHICLES WITH: PHEV (G2756530)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

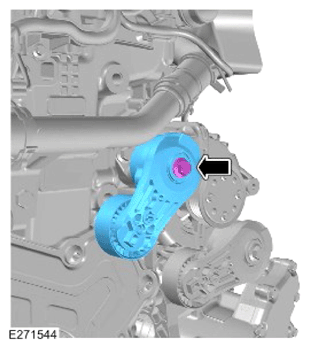

- Remove the bolt.
- Remove the Belt Integrated Starter Generator (BISG) tensioner.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

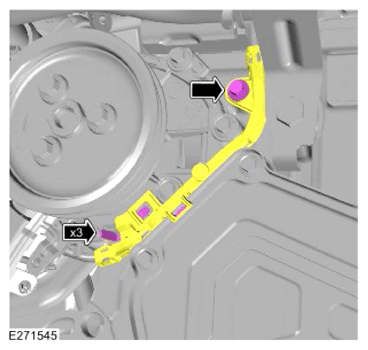

- Remove the bolt.
- Release the 3 clips.
- Release the engine coolant pump wiring harness bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

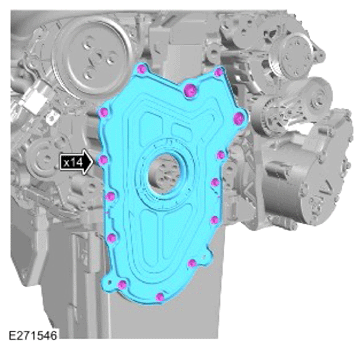

- Remove the 14 bolts.
- Remove the engine front cover.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

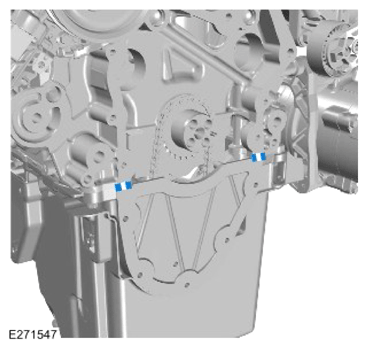

Use a suitable tool to remove the sealant as illustrated.
