Continuous Variable Valve Lift Oil Temperature Sensor (G2148902): Removal

WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Remove the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L PETROL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

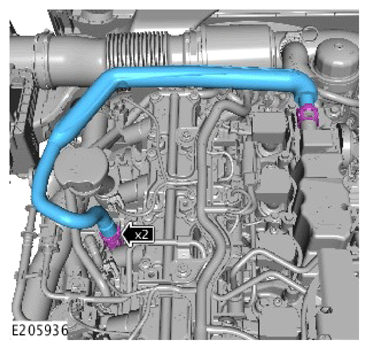

- Disconnect the breather pipe.
- Remove the breather pipe.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

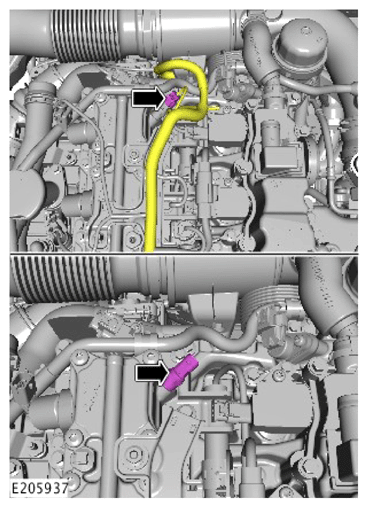

- Disconnect the electrical connector from the Continuous Variable Valve Lift (CVVL) oil temperature sensor.
- Remove the CVVL oil temperature sensor.
