Component Torque Location

WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.
Refer to the procedure for the torque sequence  .

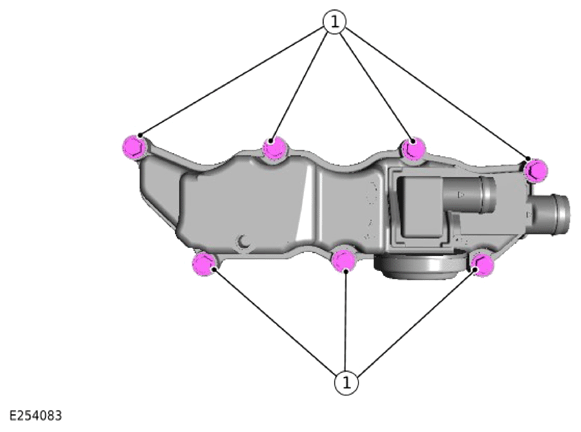

G15622051Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
TORQUE SPECIFICATIONS

Item Description Nm lb-ft
1 Engine Vent Oil Separator bolts 12 8.8
