Valve Cover Vent Oil Separator (G2142088): Removal

WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.

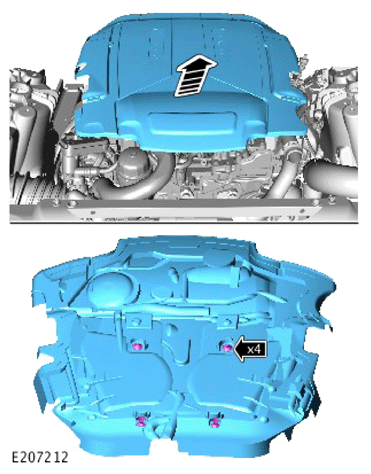

  1. G15622058Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the engine cover.

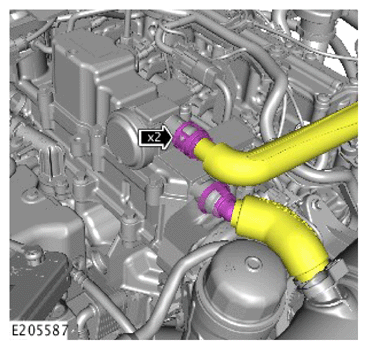

  2. G15622059Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the 2 valve cover breather hoses.

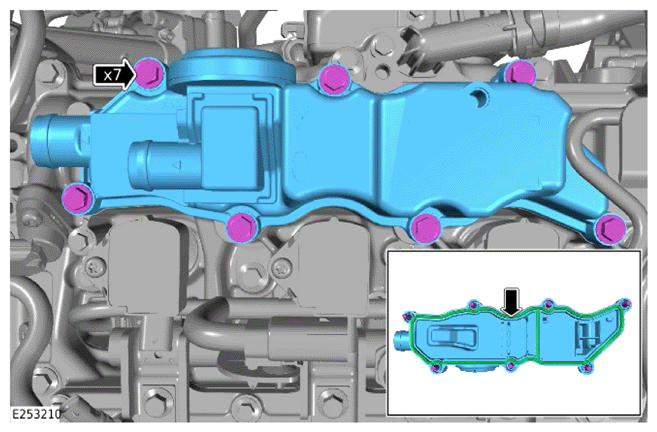

  3. NOTE: The bolts are captive.
    G15622060Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the engine vent oil separator.
    • Remove and discard the seal.
