Valve Cover Vent Oil Separator (G2142088): Installation

WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION: Make sure that all mating surfaces are clean and free from foreign material.

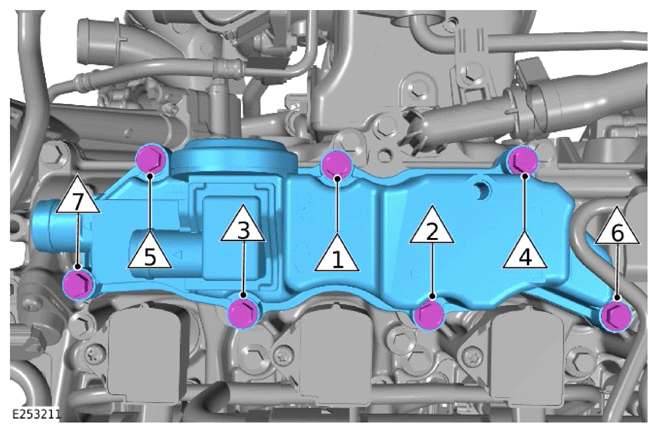

    Fig 1: Engine Vent Oil Separator Tightening Sequence
    G15622061Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install a new seal.

      Renew Part: Valve cover vent oil separator to cylinder head seal Quantity: 1  .

    • Install the engine vent oil separator.
    • Tighten the 7 bolts in the illustrated sequence.

      Torque  : 12 Nm

  2. Connect the 2 valve cover breather hoses.
  3. Install the engine cover.
