Positive Crankcase Ventilation System - Repair (G2956762): Installation

WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.

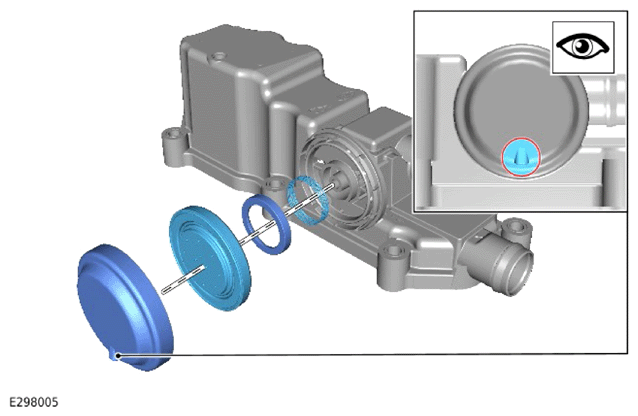

  1. CAUTION: Make sure the vent is aligned to the position illustrated.
    G15622064Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Assemble the positive crankcase ventilation valve components in the order illustrated.
    • Install the positive crankcase ventilation valve assembly.
  2. Install the engine cover.

    Refer to: ENGINE COVER - INGENIUM I4 2.0L PETROL
