Engine Vent Module Oil Separator
WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|

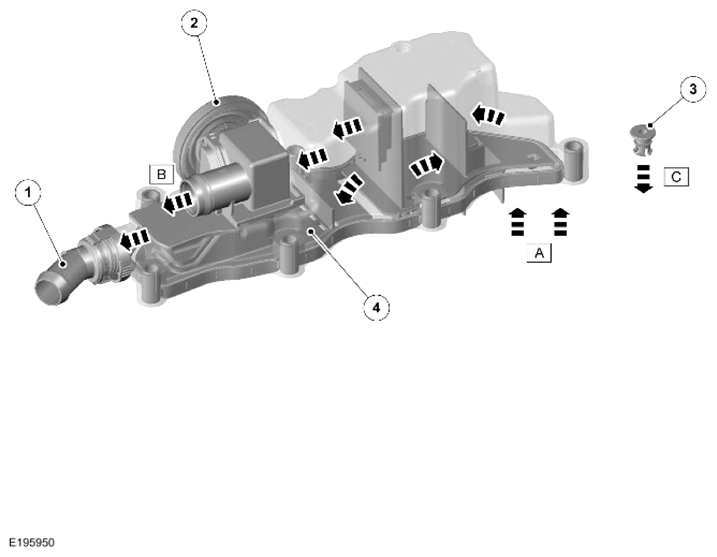

| ITEM |
DESCRIPTION |
| A |
Gas and oil vapor |
| B |
Gas vapor |
| C |
Oil |
| 1 |
Breather pipe from turbocharger |
| 2 |
Positive crankcase ventilation valve |
| 3 |
Oil drain valve |
| 4 |
Positive crankcase ventilation baffle |
