Ignition Coil-On-Plug (G1998301): Removal
WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Remove the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L PETROL

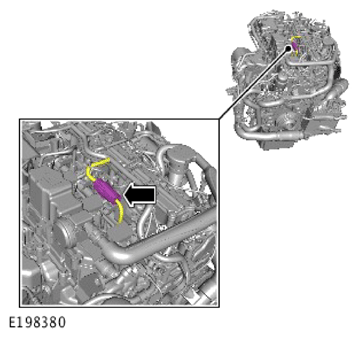

Disconnect the fuel rail electrical connector.

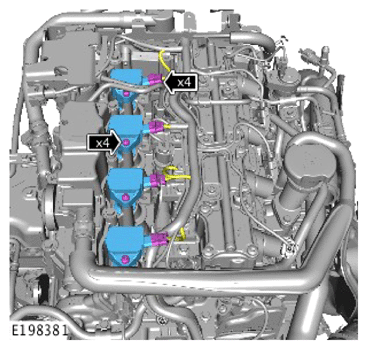

- Disconnect the 4 electrical connectors.
- Remove the 4 retaining bolts.
- Remove the 4 ignition coils.
