Turbocharger (G2778635): Notes

18.50.32 TURBOCHARGER ASSEMBLY - RENEW 2000 CC, AJ21, DIESEL 1.50

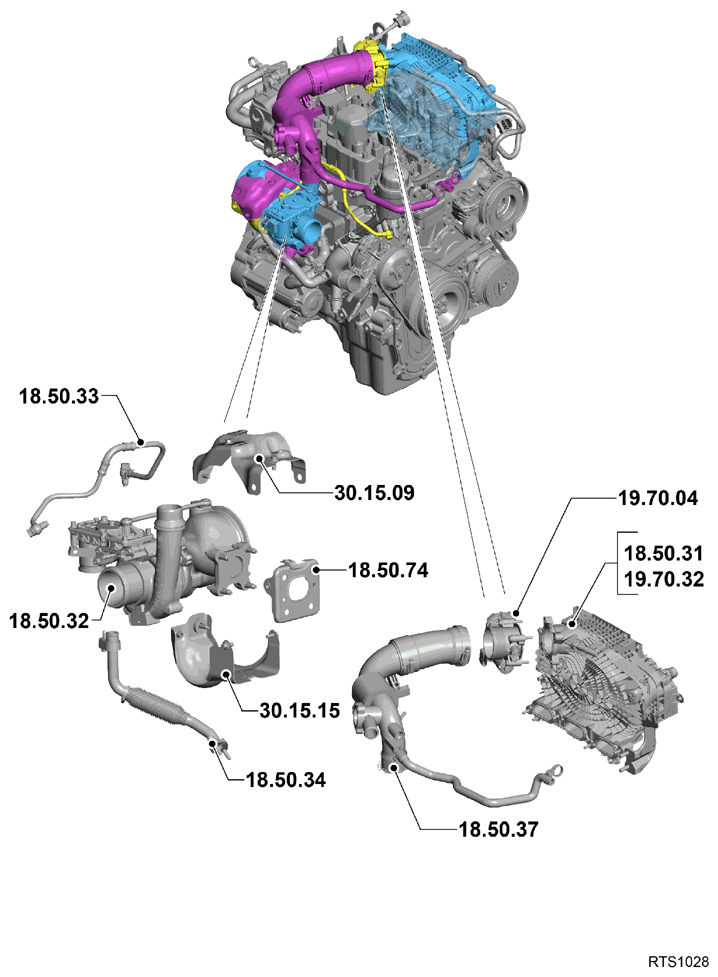

G15621790Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
18.50.32 TURBOCHARGER ASSEMBLY - RENEW 2000 CC, INGENIUM PETROL 1.50

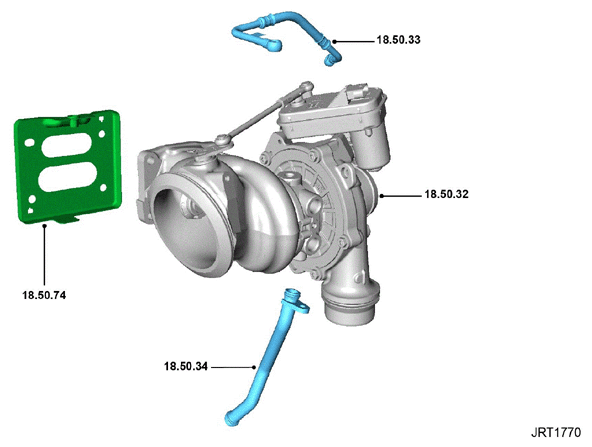

G15621791Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
18.50.32 TURBOCHARGER ASSEMBLY - RENEW 3000 CC, INGENIUM DIESEL, WITH DIESEL EXHAUST FLUID 5.80

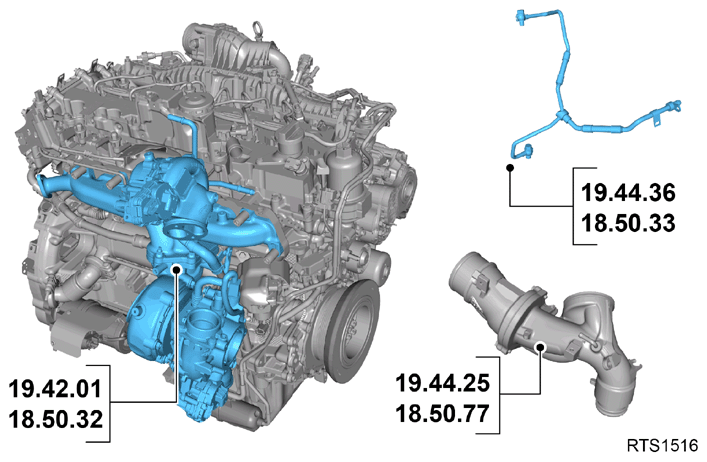

G15621792Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
18.50.32 TURBOCHARGER ASSEMBLY - RENEW 3000 CC, INGENIUM DIESEL, WITHOUT DIESEL EXHAUST FLUID 5.00
G15621793Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
18.50.32 TURBOCHARGER ASSEMBLY - RENEW 3000 CC, INGENIUM PETROL 5.00

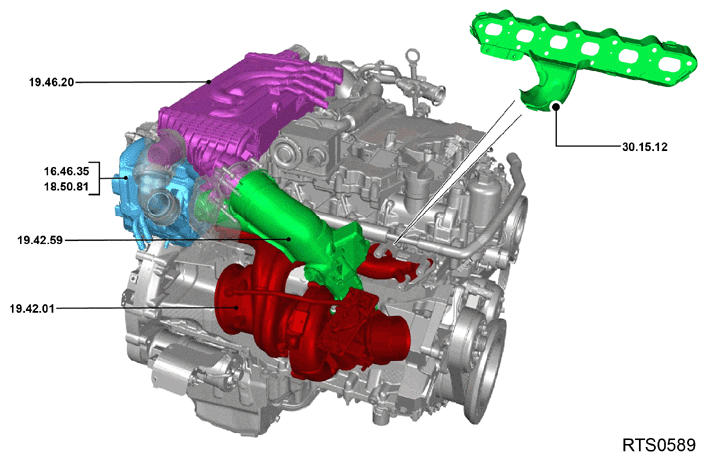

G15621794Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
