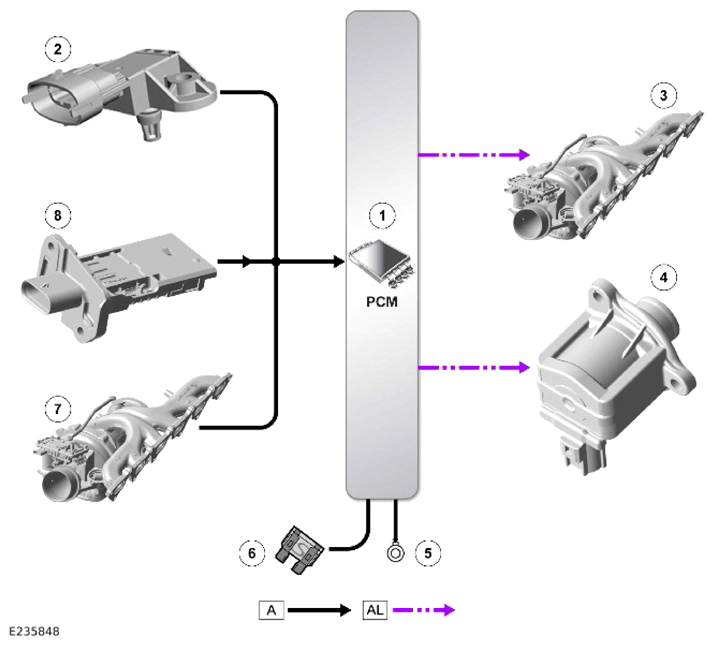

Control Diagram
A = HARDWIRED: AL = PWM .
| ITEM | DESCRIPTION |
|---|---|
| 1 | PCM |
| 2 | Manifold Absolute Pressure and Temperature sensor (MAPT) |
| 3 | Turbocharger wastegate actuator |
| 4 | Compressor Recirculation Valve (CRV) |
| 5 | Ground |
| 6 | Power supply |
| 7 | Turbocharger wastegate actuator position sensor |
| 8 | Mass Air Flow and Temperature (MAFT) (quantity 2) |
