Brake Caliper - INGENIUM I4 2.0L Petrol/TDV6 3.0L Diesel/V6 S/C 3.0L Petrol (G1898588): Installation

  1. G11308612Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Inspect the caliper piston and slide pin seals for damage.

  2. G11308613Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque: 58 Nm

  3. CAUTION:
    • Inspect the brake hose sealing washers for signs of damage, if damage is present install new sealing washers.
    • Make sure that the brake hose is not twisted and is correctly located.

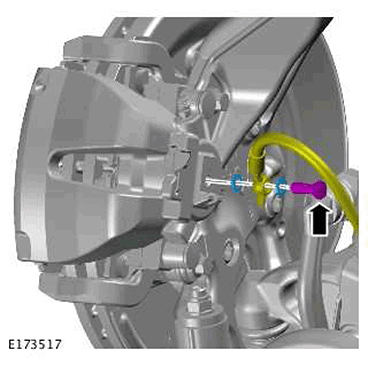

    G11439843Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the flexible brake hose.

    Torque: 32 Nm

  4. G11308609Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  5. G11308608Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  6. NOTE: If equipped.
    G11308607Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque: 6 Nm

  7. Refer to: BRAKE SYSTEM BLEEDING .
  8. Refer to: REAR SUSPENSION - INGENIUM I4 2.0L DIESEL/INGENIUM I4 2.0L PETROL/TDV6 3.0L DIESEL/V6 S/C 3.0L PETROL
