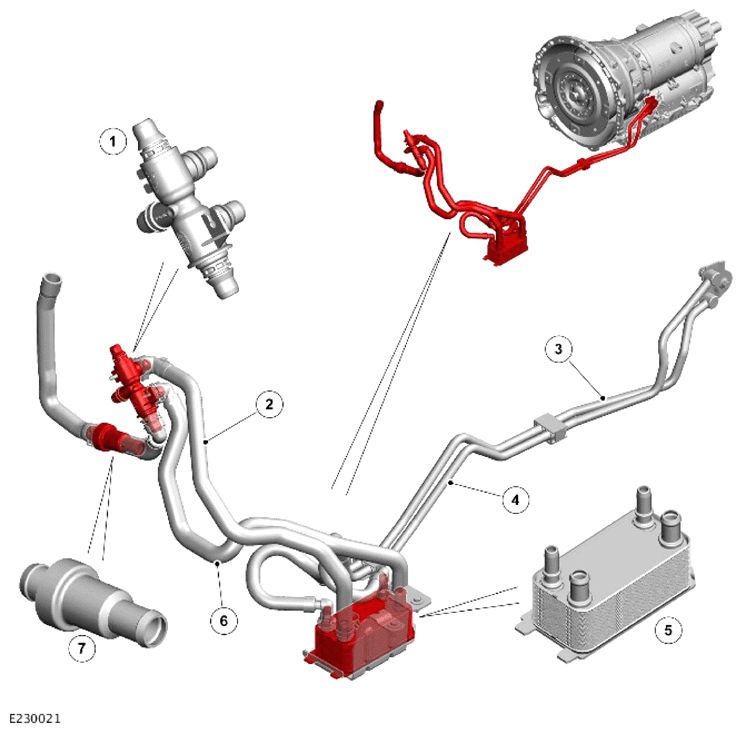

Component Location
WARNING: This page is about a different variant/trim than selected.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Automatic Transmission Fluid (ATF) warming valve |
| 2 |
Engine coolant outlet |
| 3 |
ATF inlet |
| 4 |
ATF outlet |
| 5 |
ATF cooler |
| 6 |
Engine coolant inlet |
| 7 |
Thermostatic control valve |
