Variable Camshaft Timing Unit (G2757515): Removal

WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • If the vehicle has been powered down, do not power up the vehicle until all the bonding points have been tested.
  • It is the responsibility of the Electric Vehicle Senior Authorized Person (EVSAP) to make sure they comply with any local legislation for work on High Voltage (HV).
  • The approved Personal Protective Equipment (PPE) must be worn where indicated within this procedure and not removed unless indicated within a step. All items of PPE  must be checked for signs of damage before each use, if damaged, replacement PPE  must be obtained before doing this procedure.
NOTE:
  • All Permit To Work (PTW) documents must be kept for a minimum of 5 years.
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.

The following step(s) applies to:

All vehicles

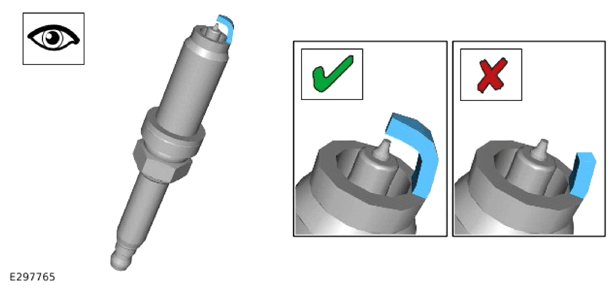

  1. CAUTION: If the Variable Camshaft Timing (VCT) unit is replaced due to a fault, the spark plugs must be examined.
    G15617606Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Examine the spark plugs and replace as required.

    Refer to: SPARK PLUGS (G1998302)

  2. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

    The following step(s) applies to:

    Plug in hybrid electric vehicles only

  3. WARNING: Jaguar Land Rover (JLR) Electric Vehicle Competent Person (EVCP) trained technicians only.
    G15617607Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    This procedure involves work on components associated with the HV  system. Only technicians qualified to EVCP level or higher are allowed to do this procedure.  It is mandated that all technicians involved with the steps in this procedure have read and understood the Electric Vehicle (EV) Safety Rules.

    Refer to: ELECTRIC VEHICLE SAFETY RULES

  4. G15617608Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Power down the HV  system. Only technicians qualified to Electric Vehicle Authorized Person (EVAP) level are allowed to perform this procedure. It is mandated that all technicians involved with the steps in this procedure have read and understood the EV  Safety Rules.

    Refer to: PHEV POWER DOWN/UP - COMPLETE VEHICLE - PATHFINDER

  5. Refer to HV  electrical connector operation and inspection document before disconnecting any HV  electrical connectors.

    Refer to: GENERAL PROCEDURES

    The following step(s) applies to:

    All vehicles

  6. Disconnect the 12 V system.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  7. Remove the charge air cooler.

    Refer to: CHARGE AIR COOLER (G1998338)

  8. Remove the upper timing cover.

    Refer to: UPPER TIMING COVER (G2498222)

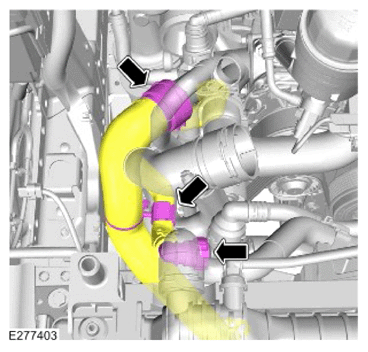

  9. G15617609Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the 2 hose connections.
    • Release the hose clip.
    • Position the 2 hoses aside.

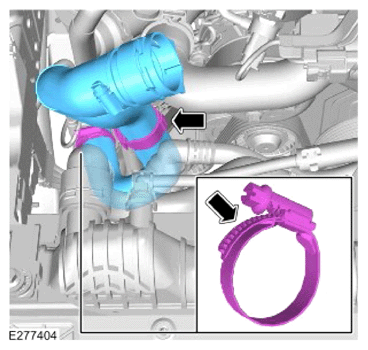

  10. G15617610Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the hose clamp.
    • Release the hose clip.
    • Remove the hose.

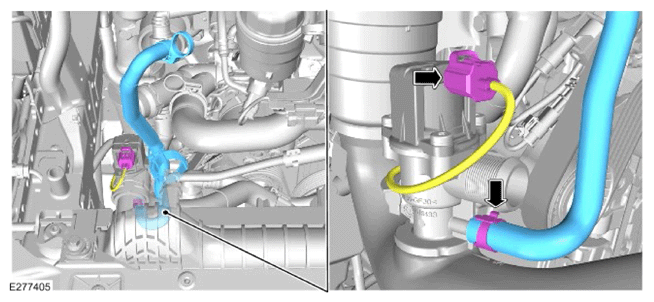

  11. G15617611Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the electrical connector.
    • Release the hose clamp.
    • Remove the hose.

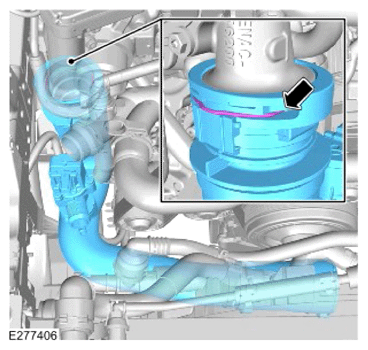

  12. G15617612Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the charge air cooler intake pipe retaining clip.
    • Remove the charge air cooler intake pipe.

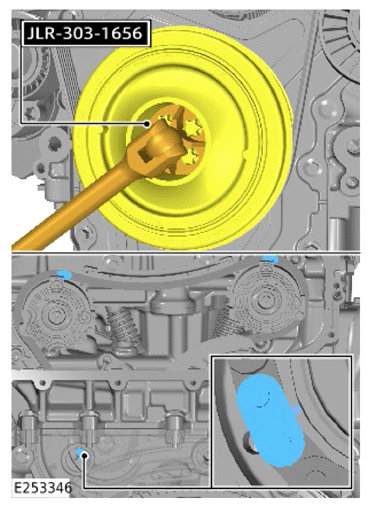

  13. G15617613Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tool JLR-303-1656 as illustrated.

      Special Tool(s): JLR-303-1656

    • Use the special tool JLR-303-1656 to rotate the crankshaft until the timing marks align as illustrated.

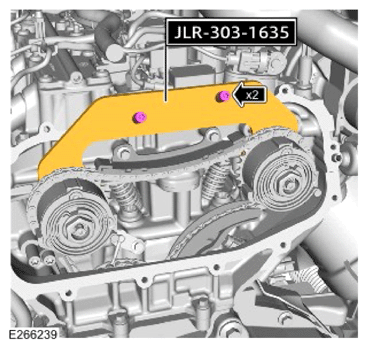

  14. G15617614Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tool JLR-303-1635 as illustrated.

      Special Tool(s): JLR-303-1635

    • Install and tighten the 2 special tool bolts.

      Torque  : 13 Nm

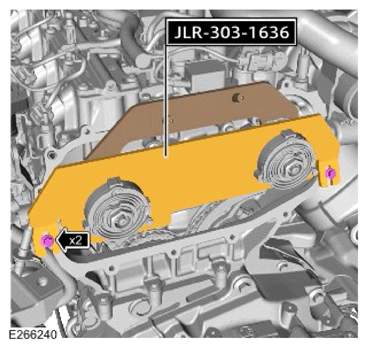

  15. G15617615Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tool JLR-303-1636 as illustrated.

      Special Tool(s): JLR-303-1636

    • Install and tighten the 2 special tool bolts.

      Torque  : 13 Nm

  16. CAUTION: Only rotate the crankshaft clockwise.
    NOTE:
    • The engine may require rotating to the correct position before the special tool can be installed.
    • The 4 locating pegs of the special tool must be installed correctly into the crankshaft pulley.

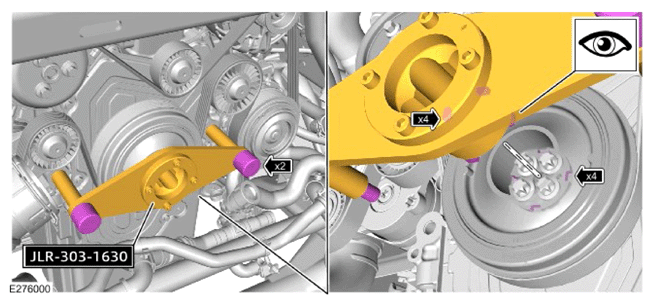

    G15617616Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install special tool JLR-303-1630 to the crankshaft pulley.

      Install the Special Tool(s): JLR-303-1630

    • Install and hand-tighten the 2 special tool bolts.

    The following step(s) applies to:

    Plug in hybrid electric vehicles only

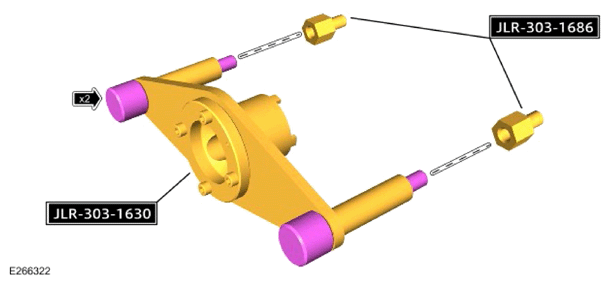

  17. G15617617Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Install the special tool JLR-303-1686 adapter to the special tool JLR-303-1630 crankshaft pulley locking tool.

    Special Tool(s): JLR-303-1630  , JLR-303-1686

  18. CAUTION: Only rotate the crankshaft clockwise.
    NOTE:
    • The engine may require rotating to the correct position before the special tool can be installed.
    • The 4 locating pegs of the special tool must be installed correctly into the crankshaft pulley.

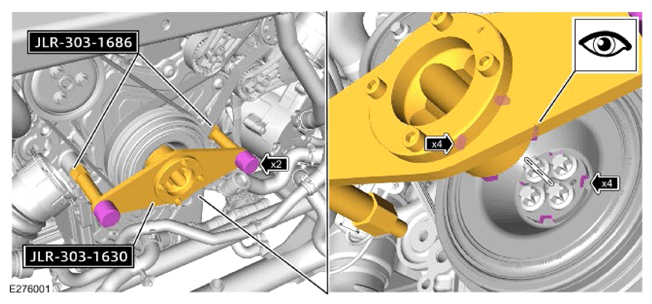

    G15617618Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the special tools JLR-303-1630 and JLR-303-1686 to lock the crankshaft.

      Special Tool(s): JLR-303-1630  , JLR-303-1686

    • Install and hand-tighten the 2 special tool bolts.

    The following step(s) applies to:

    All vehicles

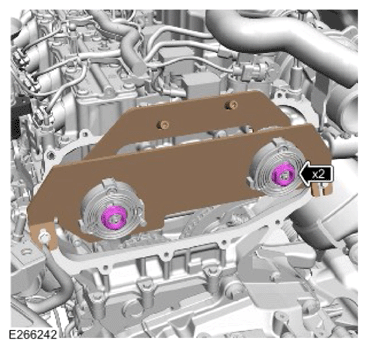

  19. G15617619Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Loosen, but do not fully remove the 2 VCT  bolts.

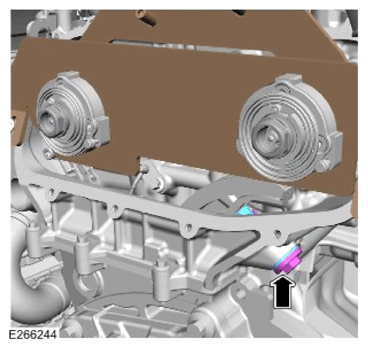

  20. G15617620Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove and discard the upper timing chain tensioner.

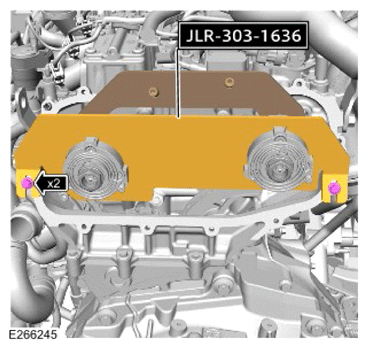

  21. G15617621Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 2 special tool bolts.
    • Remove the special tool JLR-303-1636.

      Special Tool(s): JLR-303-1636

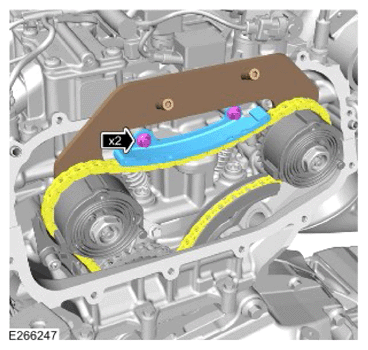

  22. G15617622Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove and discard the 2 bolts.
    • Remove and discard the upper timing chain guide.

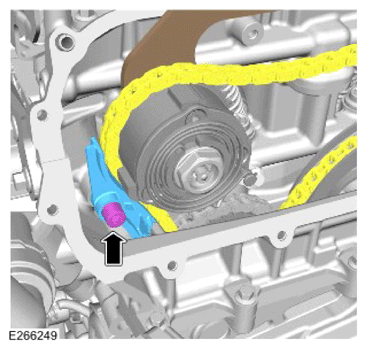

  23. G15617623Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove and discard the bolt.
    • Remove and discard the left upper timing chain guide.

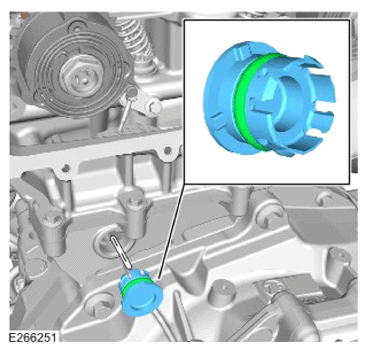

  24. G15617624Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove and discard the drive chain cap.

  25. CAUTION: Note the location of the VCT  units prior to removal. Each VCT  unit is matched to a specific camshaft.

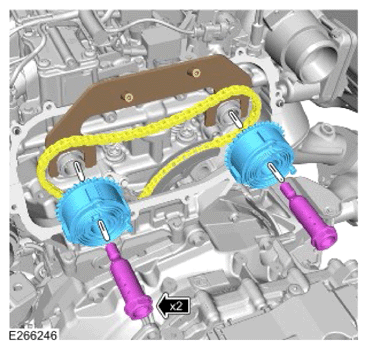

    G15617625Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove and discard the 2 VCT  unit center bolts.
    • Remove the 2 VCT  units.

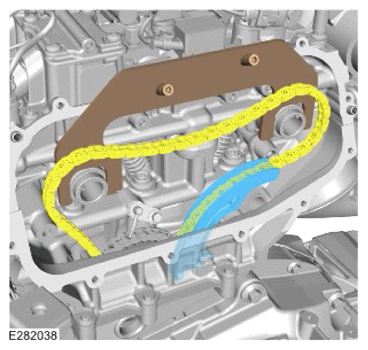

  26. G15617626Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove and discard the upper timing chain tensioner arm.
