Valves (G1998039): Removal

WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If the cylinder head valve components are to be reused, mark position of the valve components to make sure they are reassembled in the same position.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustration showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Disconnect the startup battery ground cable.
Refer to: SPECIFICATIONS
Remove the cylinder head.
Refer to: CYLINDER HEAD (G2498210)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

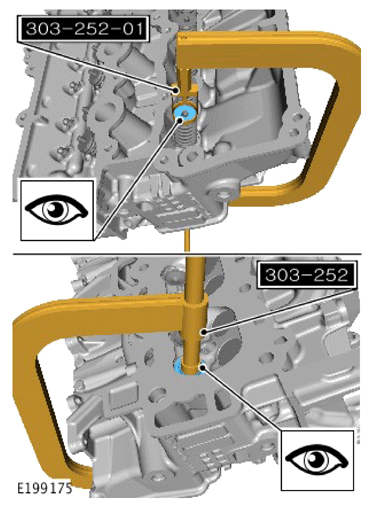

Position the special tools as illustrated.

Special Tool(s): 303-252
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

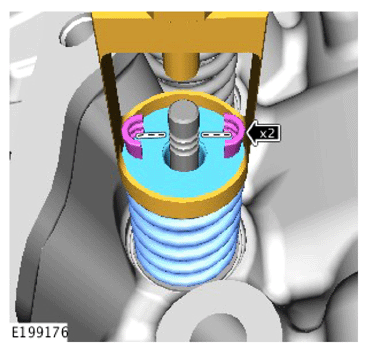

Tighten the special tool until the valve spring retaining collets can be removed.
Remove the special tool.
Special Tool(s): 303-252
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

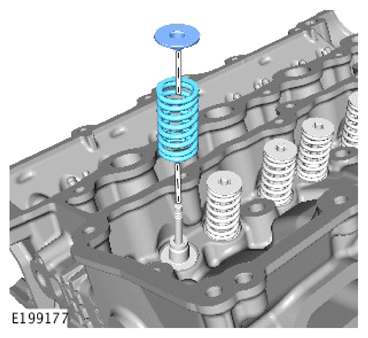

Remove the valve spring and cap.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

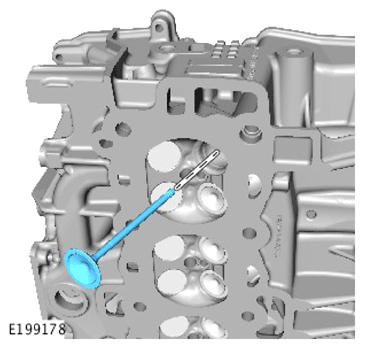

Remove and inspect the valve.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

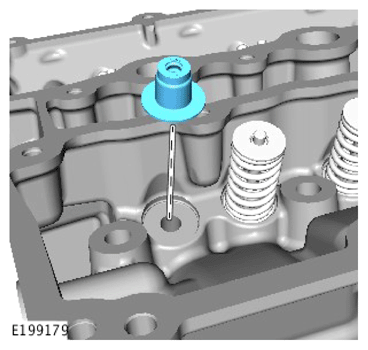

Remove and discard the valve stem seal.
Repeat the removal procedure for the remaining valves.
