Right Engine Mount (G2498212): Installation

WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.

- Install the engine mount.
- Install and tighten the 2 bolts.
  Torque : 47.5 Nm
- Connect the vacuum pipe to the engine mount.

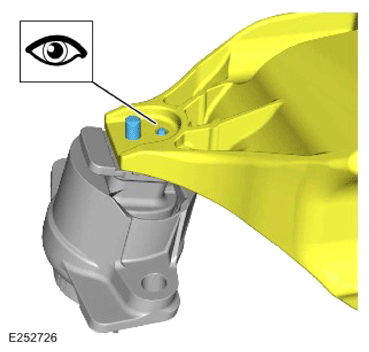

CAUTION: Make sure the engine mount guide pin in the correct position on both side.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Use the special tool 303-021 to lower the engine until the engine bracket rests on the engine mounts.
Install and tighten the engine mount nut.
Torque : 60 Nm
- Install the heat shield.
- Install the 2 bolts.
  Torque : 20 Nm
Remove the engine support bracket.
Special Tool(s): 303-021
- Remove the bolt.
- Remove the engine lifting bracket.
  Special Tool(s): JLR-303-1633
Install the cowl panel.
Refer to: COWL PANEL
Install the engine undershield.
Refer to: ENGINE UNDERSHIELD - INGENIUM I4 2.0L DIESEL AJ21/INGENIUM I4 2.0L PETROL/INGENIUM I6 3.0L DIESEL/INGENIUM I6 3.0L PETROL
