Oil Pan - AWD (G2498224): Removal

WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains some variation in the illustration depending on the vehicle specification, but essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

    General Equipment: 2 post lift

  2. Disconnect the 12 V system.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  3. Drain the engine oil.

    Refer to: ENGINE OIL VACUUM DRAINING AND FILLING (G1997675)

  4. Remove the front final drive differential case.

    Refer to: DIFFERENTIAL - INGENIUM I4 2.0L DIESEL AJ21/INGENIUM I4 2.0L PETROL, VEHICLES WITH: PHEV

  5. Remove the crankshaft pulley.

    Refer to: CRANKSHAFT PULLEY - VEHICLES WITH: PHEV (G2756530)

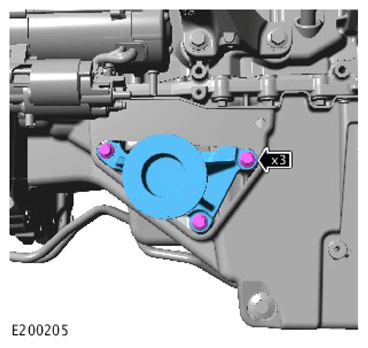

  6. G15617532Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 3 bolts securing the front drive halfshaft support bracket in position.
    • Remove the front drive halfshaft support bracket.

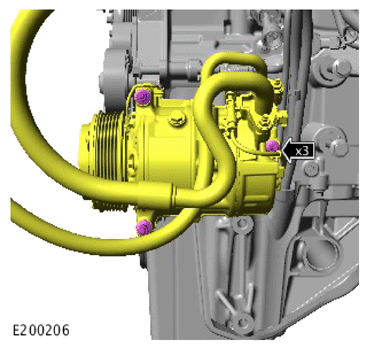

  7. G15617533Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 3 nuts securing the Air Conditioning (A/C) compressor in position.
    • Reposition and secure with suitable straps the A/C  compressor away from the engine.

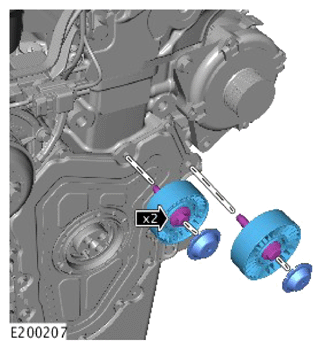

  8. G15617534Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the idler pulleys.

  9. CAUTION: Inspect the seal and replace if necessary.

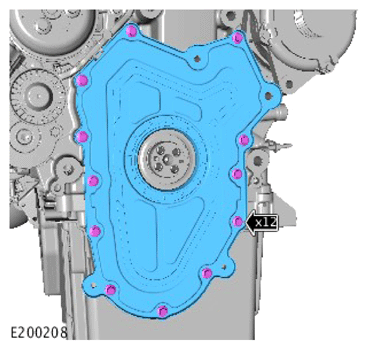

    G15617535Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 12 bolts securing the front engine cover in position.
    • Remove the front engine cover.
  10. CAUTION: Inspect the O-ring seal, install a new component if damaged.

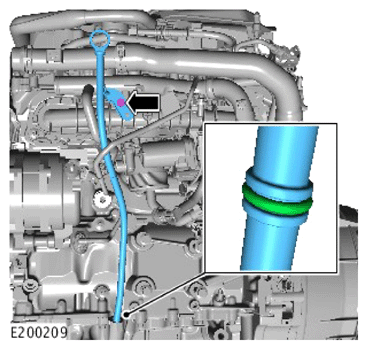

    G15617536Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the bolt securing the oil level gauge in position.
    • Remove the oil level gauge.

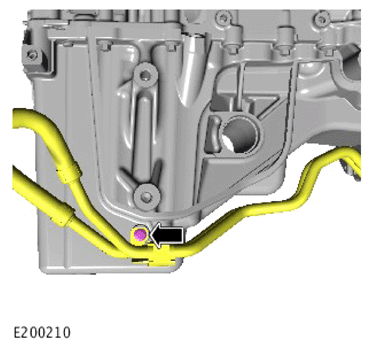

  11. G15617537Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the bolt securing the transmission tubes to the oil pan assembly.
    • Reposition the transmission fluid cooler tubes away from the oil pan.

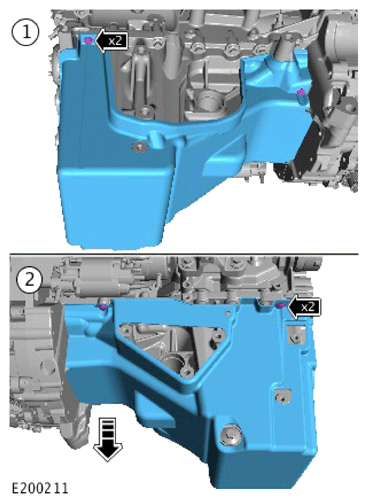

  12. G15617538Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Remove the 4 clips securing the Noise, Vibration and Harshness (NVH) to the oil pan assembly.
    • Remove the NVH  pad.

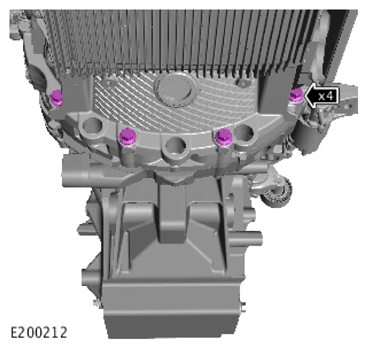

  13. G15617539Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the 4 bolts securing the transmission assembly to the oil pan assembly.

  14. CAUTION: Note the position of the bolts, prior to removal.

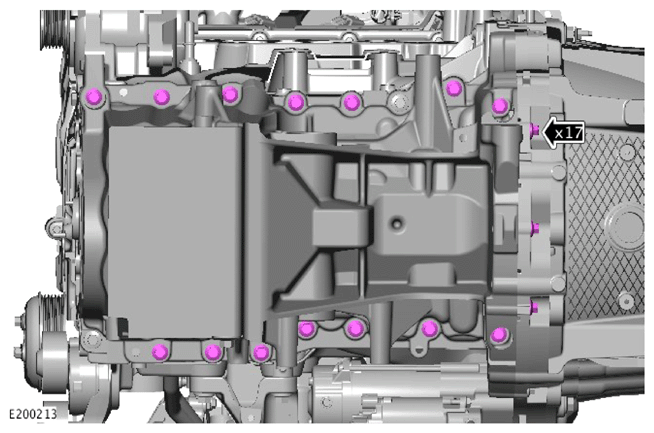

    G15617540Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Fully remove the 17 oil pan bolts.

  15. CAUTION: Note the position of the bolts, prior to removal.
    NOTE: Loosen, but do not fully remove the bolts.
    G15617541Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Partially remove the remaining 2 oil pan bolts.

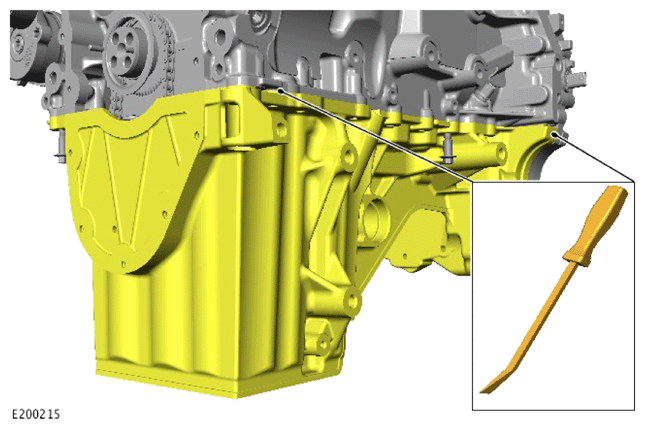

  16. G15617542Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Using a suitable prybar, release the oil pan assembly.

  17. CAUTION: Be prepared to collect escaping fluids.

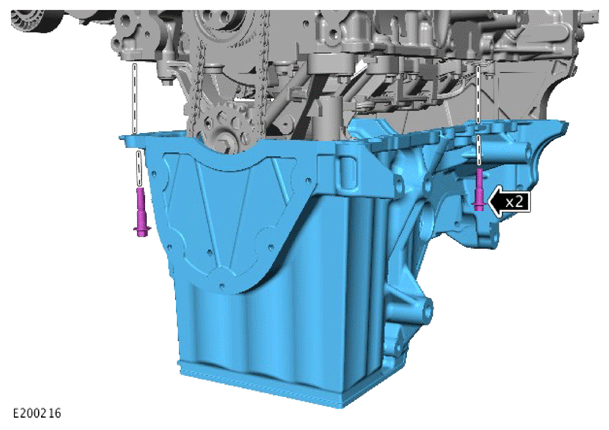

    G15617543Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Fully remove the remaining 2 oil pan bolts.
    • Remove the oil pan assembly.
