Intake Camshaft (G2498219): Notes

WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.
12.13.21 INTAKE CAMSHAFT - ENGINE SET - RENEW 2000 CC, AJ21, DIESEL 5.10
G15617379Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

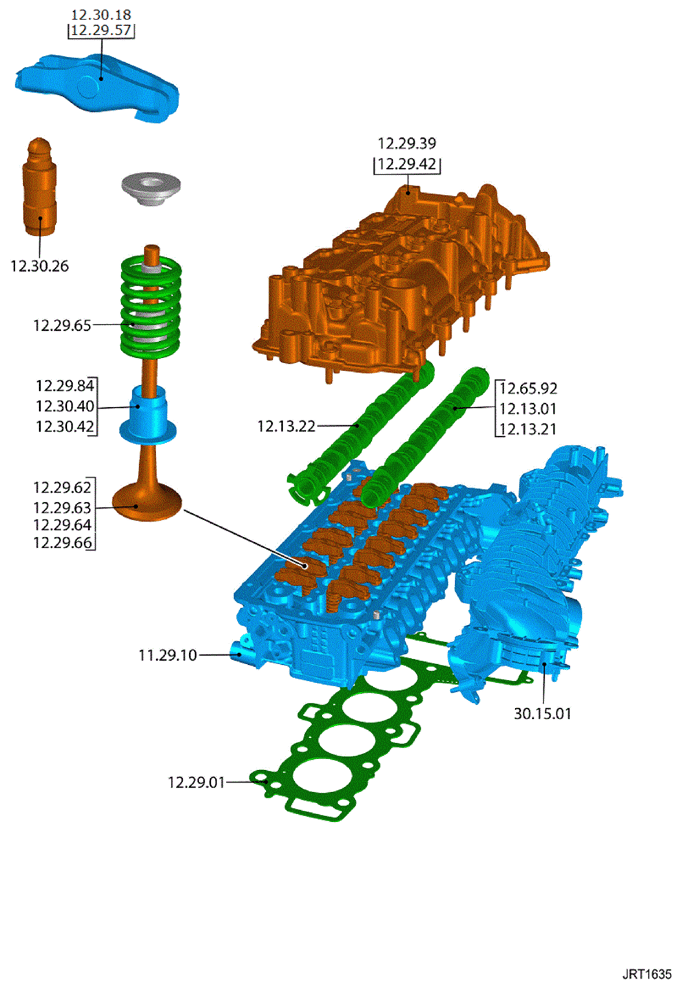

12.13.21 INTAKE CAMSHAFT - ENGINE SET - RENEW 2000 CC, INGENIUM PETROL, IC 6.30
G15617380Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
12.13.21 INTAKE CAMSHAFT - ENGINE SET - RENEW 2000 CC, INGENIUM PETROL, PHEV 7.40
G15617381Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

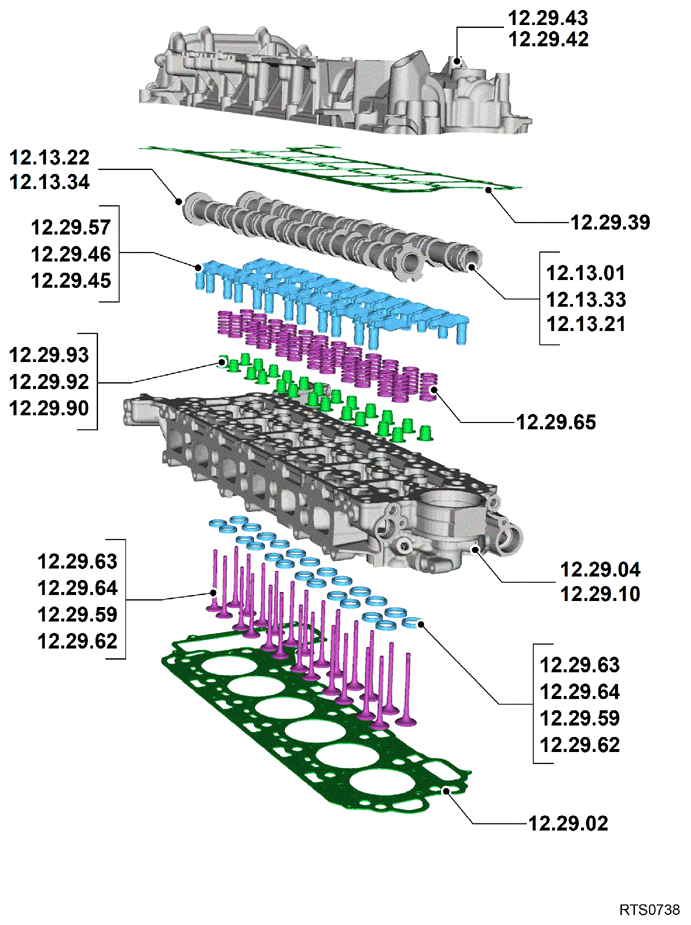

12.13.21 INTAKE CAMSHAFT - ENGINE SET - RENEW 3000 CC, INGENIUM DIESEL 5.30
G15617382Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
12.13.21 INTAKE CAMSHAFT - ENGINE SET - RENEW 3000 CC, INGENIUM PETROL 8.10
G15617383Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

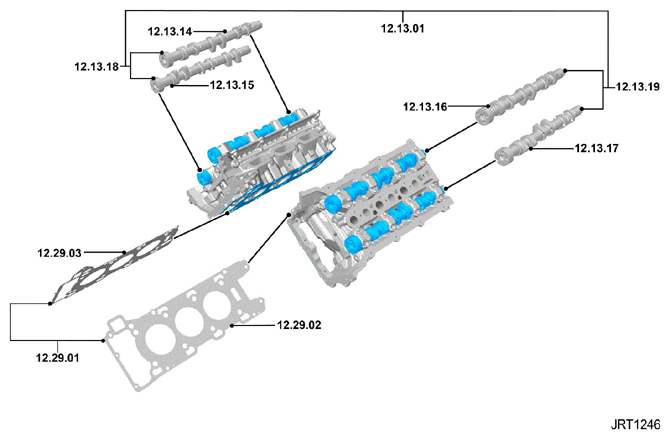

12.13.21 INTAKE CAMSHAFT - ENGINE SET - RENEW 5000 CC, AJ V8, SUPERCHARGED 14.50
G15617384Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
