Drive Plate (G2744273): Installation
WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.
-

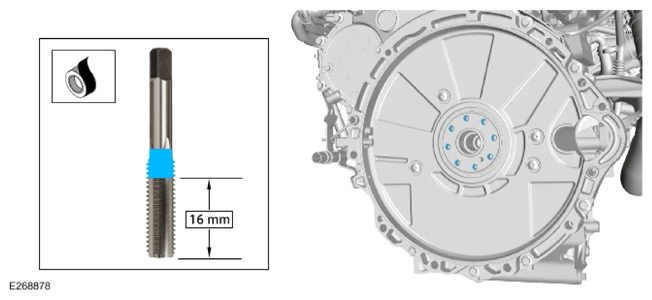

CAUTION: Under no circumstances should the drive plate retaining bolts be inserted into the crankshaft with the drive plate removed. Failure to follow this instruction will result in damage to the engine.NOTE: Do not insert the bottoming tap more than the depth of the threaded holes (16 mm). Apply tape to the bottoming tap 16 mm from the end as a visual guide.
- Using a suitable bottoming tap, clean out the threads.
- Using suitable brake cleaner, remove any foreign material from the threads.
- CAUTION: Make sure that new bolts are installed.NOTE: The drive plate will only locate in one position.
- Install the drive plate.

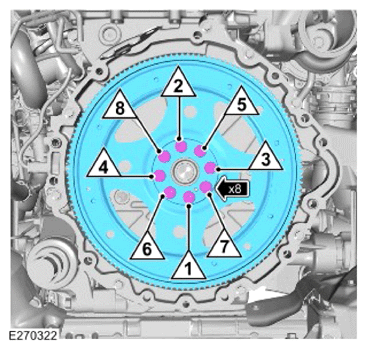

- Install and tighten the 8 bolts in the sequence illustrated.
Renew Part: Drive plate bolt(s) Quantity: 8 .
Torque
- Stage 1: 30 Nm
- Stage 2: 120°

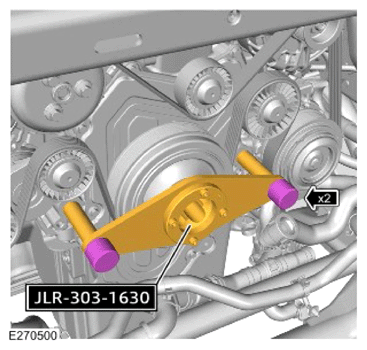

- Release the 2 special tool bolts.
- Remove the special tool.
Special Tool(s): JLR-303-1630

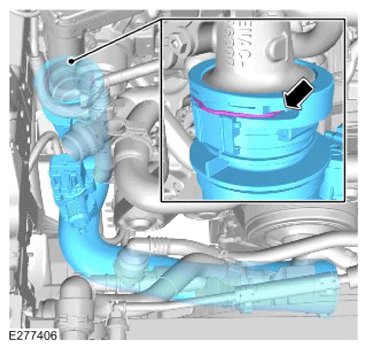

- Install the charge air cooler intake pipe.
- Secure the charge air cooler intake pipe retaining clip.

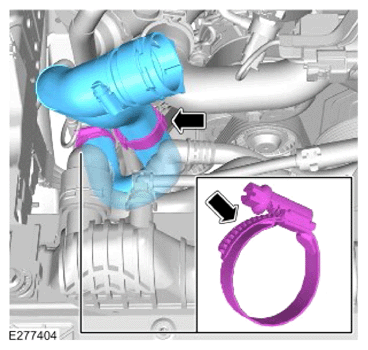

- Install the hose.
- Secure the hose clamp.

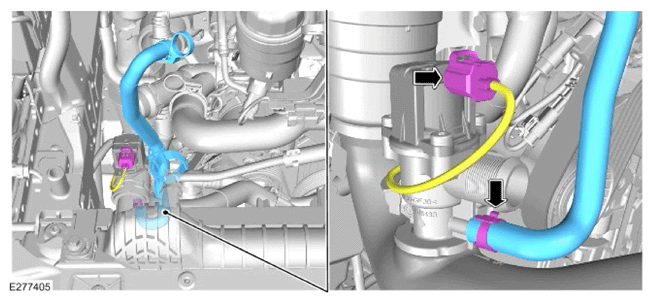

- Connect the electrical connector.
- Install the hose.
- Secure the hose clamp.
- Secure the CRV hose clip.

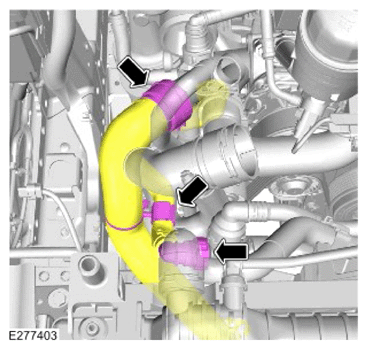

- Position the 2 hoses to their original position.
- Secure the 2 hose connections.
- Secure the hose clip.
- Install the transmission assembly.
Refer to: TRANSMISSION - INGENIUM I4 2.0L PETROL
Refer to: TRANSMISSION - INGENIUM I4 2.0L PETROL, VEHICLES WITH: PHEV
- Install the charge air cooler.
Refer to: CHARGE AIR COOLER (G1998338)
- Connect the 12V system.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
