Transmission Control Module And Main Control Valve Body (G1579981): Installation

WARNING: This page is about a different car, the 2019 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Steps 1 and 2 are to be completed out together.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

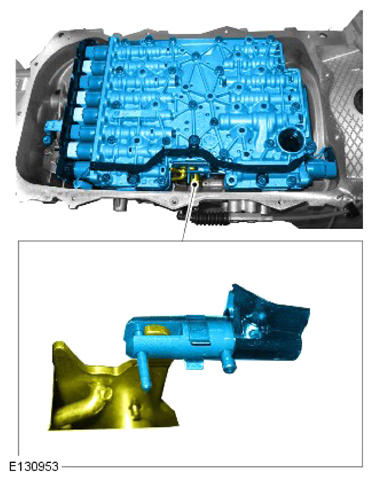

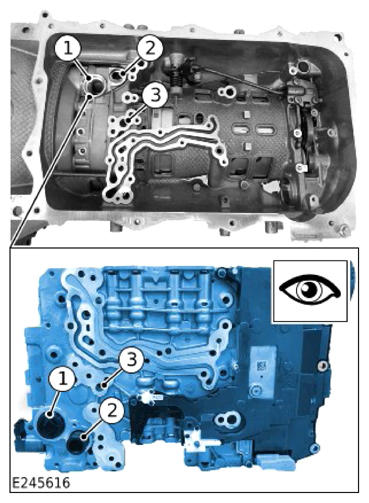

Make sure that pressure pipe (1) and pressure pipe (2) are installed correctly before installing the valve body assembly.
CAUTION: Care must be taken when refitting the valve body assembly.

NOTE: Make sure that the component is installed to the noted removal position.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the valve body and secure the linkage.
NOTE: Tighten the retaining bolts evenly and progressively.

Fig 1: Valve Body Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

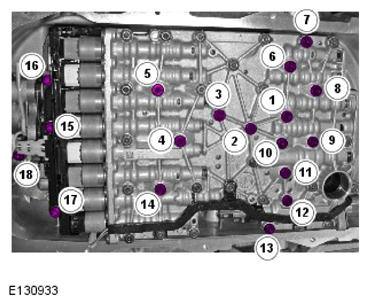

Install the valve body bolts in the sequence shown.

Torque : 8 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

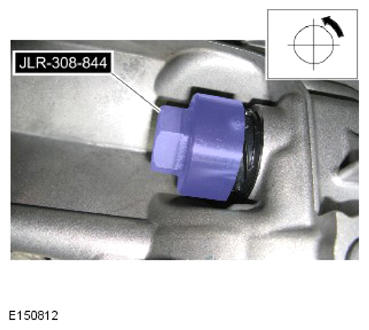

Using the special tool, turn the electrical connector 90 degrees anti clockwise to install.

Special Tool(s): JLR-308-844
Remove the special tool.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

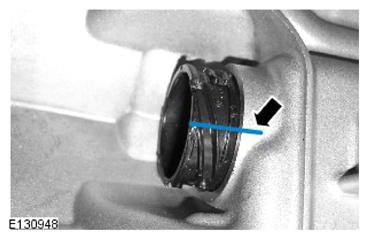

Make sure that the electrical connector is installed in the correct orientation as noted in the removal step.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

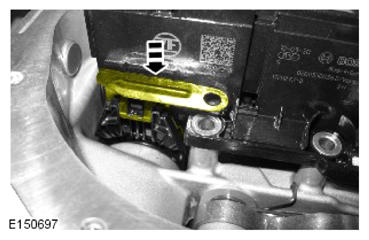

Secure the electrical connector retaining clip.
CAUTION: Make sure that the electrical connector is correctly installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

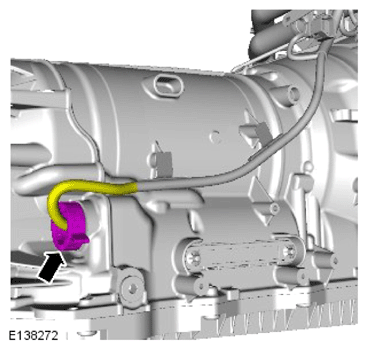

Connect the transmission electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

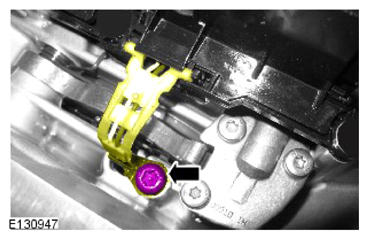

Install the electrical harness bolt.

Torque : 8 Nm
CAUTION: Make sure all suitable safety precautions are taken to protect the Transmission Control Module (TCM) and main control valve body electrical connector pins against electrostatic discharge.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the valve body bracket bolts.

Torque : 8 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

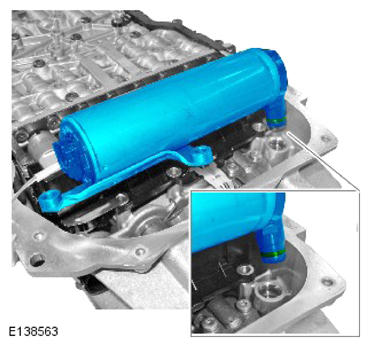

Install the oil accumulator.
NOTE: Tighten the retaining bolts evenly and progressively.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

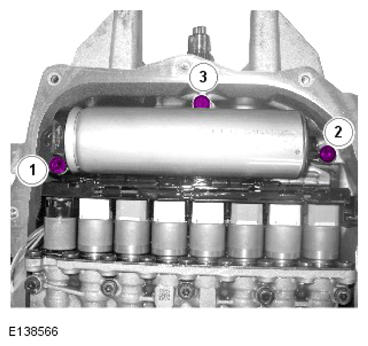

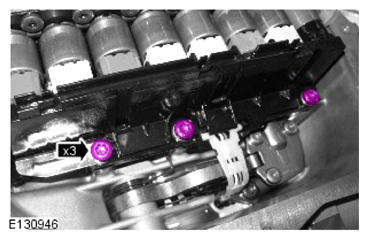

Install the 3 oil accumulator retaining bolts.

Torque : 8 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

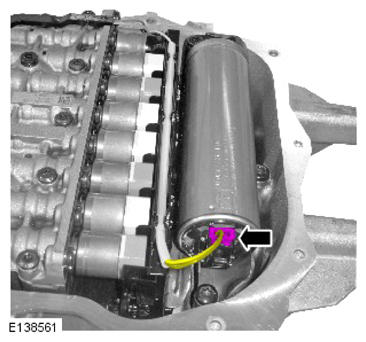

Connect the oil accumulator electrical connector.
Install the transmission fluid pan.
Refer to: TRANSMISSION FLUID PAN, GASKET AND FILTER (G1579982) .
Use the Jaguar Land Rover (JRL) approved diagnostic tool to calibrate the main control valve body and the transmission control module (TCM).
