Input Shaft Seal (G1579986): Removal

WARNING: This page is about a different car, the 2019 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Removal steps in this procedure may contain installation details.
  1. Refer to: TRANSMISSION .
  2. CAUTION: Be prepared to collect escaping fluids.

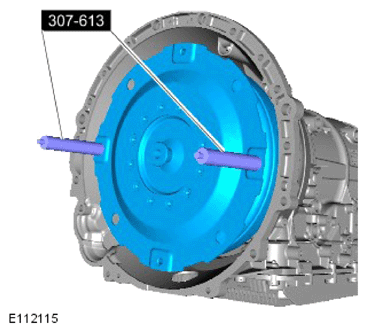

    G13884916Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Special Tool(s): 307-613

  3. CAUTION:
    • Take extra care to avoid damaging the seal register and running surface.
    • Take extra care not to damage the edges of the component.
    • Discard the seal.

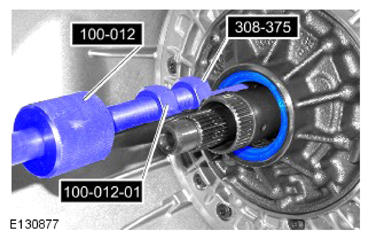

    G13884917Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Special Tool(s): 100-012  , 100-012-01  , 308-375
