Extension Housing Seal (G1579980): Installation

WARNING: This page is about a different car, the 2019 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:
- Make sure that the mating faces are clean and free of foreign material.
- Install a new seal.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

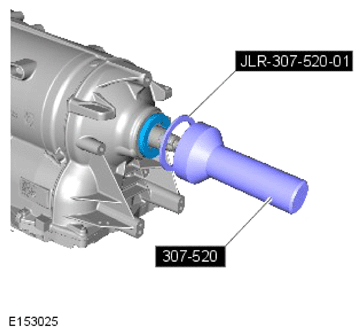

- Using the special tool, install the extension housing seal.
  Special Tool(s): 307-520

  Renew Part: Extension housing seal Quantity: 1 .
CAUTION: Install a new output flange.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

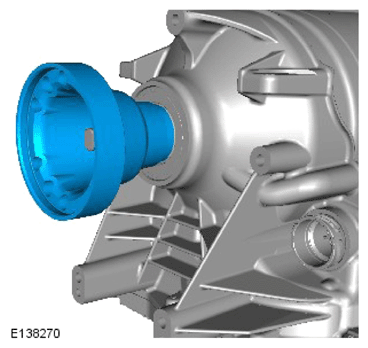

Install the transmission output flange.

Renew Part: Transmission output shaft flange Quantity: 1 .
WARNING: Make sure that a new nut is installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

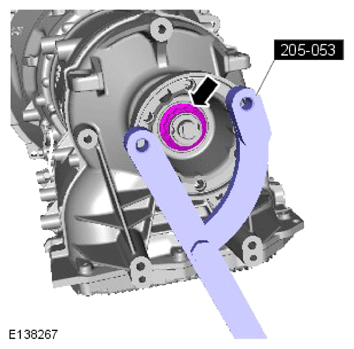

Install the transmission output flange nut.

Renew Part: Output shaft flange nut Quantity: 1 .

Torque : 60 Nm

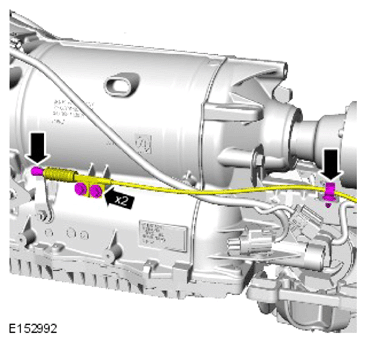

CAUTION: Care must be taken not to damage the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Secure with a cable tie.
CAUTION: Make sure that new bolts are installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

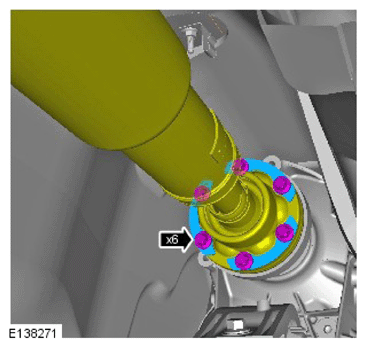

Install the drive shaft to output flange bolts.

Renew Part: Driveshaft flange bolts Quantity: 1 .

Torque : 75 Nm

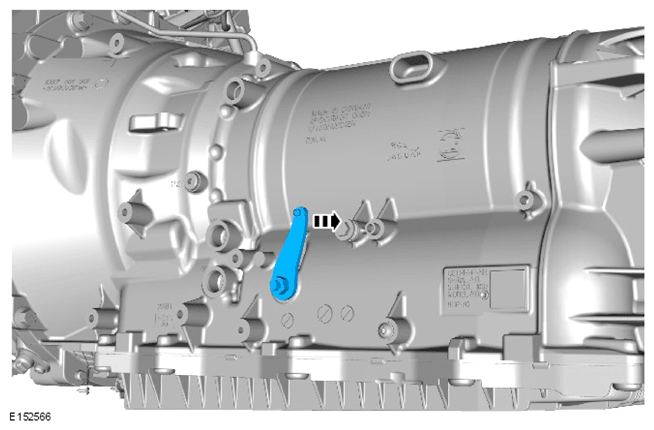

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the cable tie.

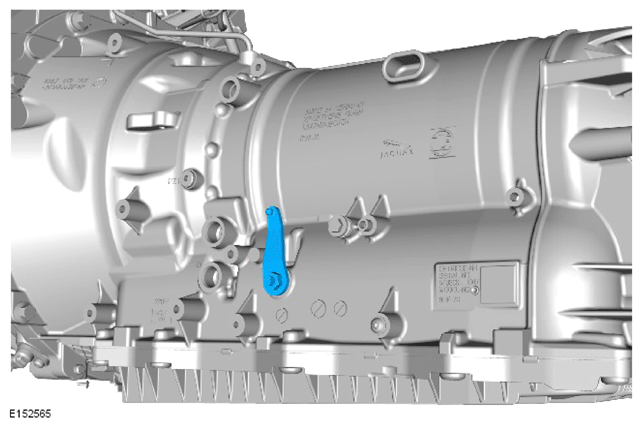

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the cable tie.
Install the transmission support insulator.
Refer to: TRANSMISSION SUPPORT INSULATOR (G1579983) .
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT (G1898506) .
