Transmission (G1579985): Notes

WARNING: This page is about a different car, the 2019 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.

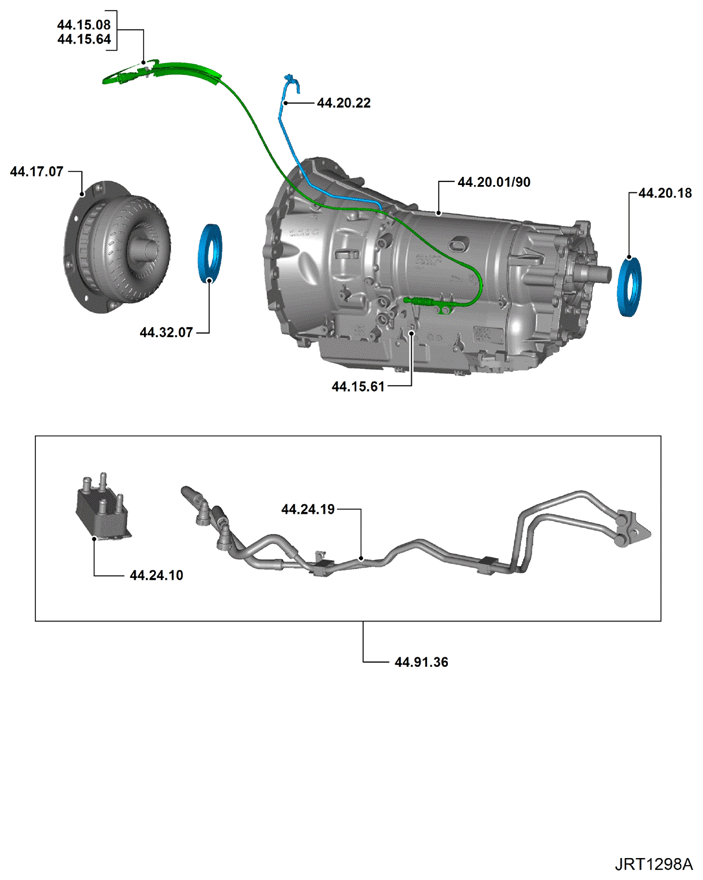

44.20.01  AUTOMATIC TRANSMISSION - RENEW  2000 CC, INGENIUM PETROL  3.40
G13885002Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

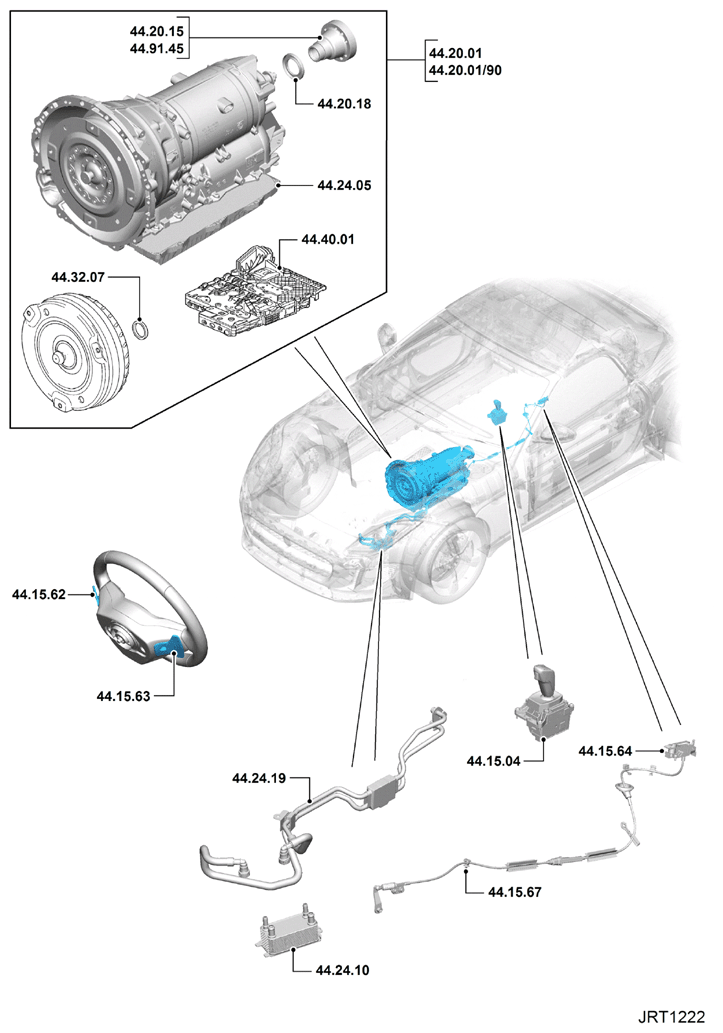

44.20.01  AUTOMATIC TRANSMISSION - RENEW  3000 CC, AJ V6 (AJ126), 2WD  3.60
G13885003Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
44.20.01  AUTOMATIC TRANSMISSION - RENEW  3000 CC, AJ V6 (AJ126), 4WD  5.10
G13885004Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
44.20.01  AUTOMATIC TRANSMISSION - RENEW  5000 CC, AJ V8, 2WD  3.60
G13885005Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
44.20.01  AUTOMATIC TRANSMISSION - RENEW  5000 CC, AJ V8, 4WD  5.10
G13885006Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
44.20.01.90  AUTOMATIC TRANSMISSION - REMOVE FOR ACCESS AND INSTALL  2000 CC, INGENIUM PETROL  3.10
G13885007Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
44.20.01.90  AUTOMATIC TRANSMISSION - REMOVE FOR ACCESS AND INSTALL  3000 CC, AJ V6 (AJ126), 2WD  3.60
G13885008Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
44.20.01.90  AUTOMATIC TRANSMISSION - REMOVE FOR ACCESS AND INSTALL  3000 CC, AJ V6 (AJ126), 4WD  4.60
G13885009Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
44.20.01.90  AUTOMATIC TRANSMISSION - REMOVE FOR ACCESS AND INSTALL  5000 CC, AJ V8, 2WD  3.50
G13885010Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
44.20.01.90  AUTOMATIC TRANSMISSION - REMOVE FOR ACCESS AND INSTALL  5000 CC, AJ V8, 4WD  4.60
G13885011Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
