Planetary Gear Set 4
WARNING: This page is about a different car, the 2019 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.
The planetary gear set 4 comprises:
- sunwheel
- 4 planetary gears
- planetary gear carrier (spider) - output shaft
- ring gear.

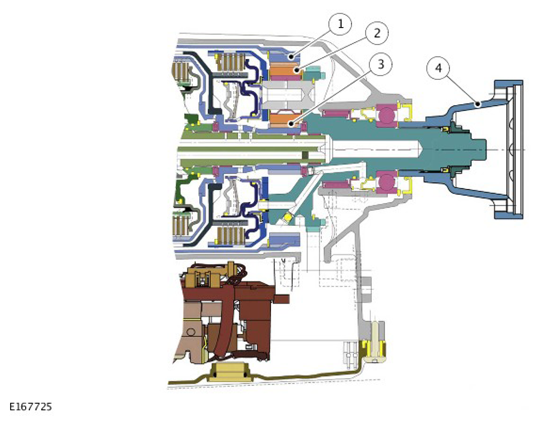

 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| ITEM |
DESCRIPTION |
| 1 |
Ring gear |
| 2 |
Planetary gears |
| 3 |
Sun wheel |
| 4 |
Output shaft |
