MECHATRONIC Valve Block: Notes
WARNING: This page is about a different car, the 2019 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.
The Mechatronic valve block is located in the bottom of the transmission and is covered by the fluid pan. The valve block houses the TCM, electrical actuators, speed sensors, control valves and the hydraulic impulse storage which provide all electro-hydraulic control for all transmission functions. The Mechatronic valve block comprises the following components:
- TCM
- seven pressure regulator solenoids
- two park lock solenoids
- twenty one hydraulic spool valves
- temperature sensor
- turbine speed sensor
- output shaft speed sensor
- HIS (Hydraulic Impulse Storage).

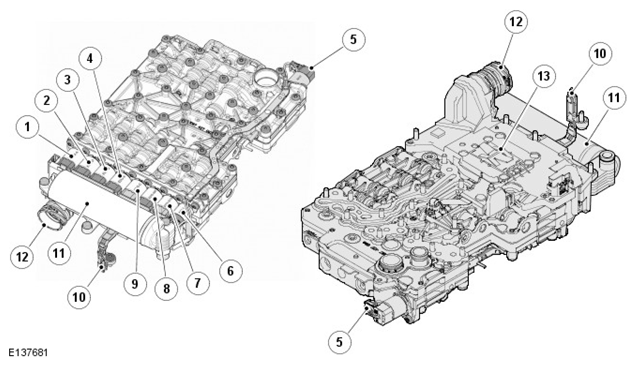

| ITEM | DESCRIPTION |
|---|---|
| 1 | EPRS A - A brake valve |
| 2 | EPRS D - D clutch valve |
| 3 | EPRS B - B brake valve |
| 4 | EPRS E - E clutch valve |
| 5 | MV 2 - magnet-valve 2 for electrical park interlock (hold out of park) |
| 6 | MV 1 - pressure reducing valve |
| 7 | EPRS SYS - system pressure valve |
| 8 | EPRS WK - Torque converter lock-up clutch valve |
| 9 | EPRS C - C clutch valve |
| 10 | Transmission output shaft speed sensor |
| 11 | Hydraulic Impulse Storage (HIS) |
| 12 | Electrical connector |
| 13 | Transmission Control Module (TCM) - hidden |
