Engine Coolant Level Switch (G2132077): Removal

WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

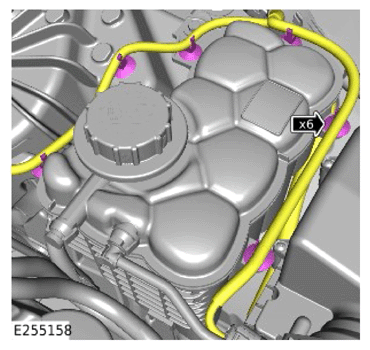

See Figure

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the 6 clips.
- Reposition the wiring harness away from the coolant expansion tank.

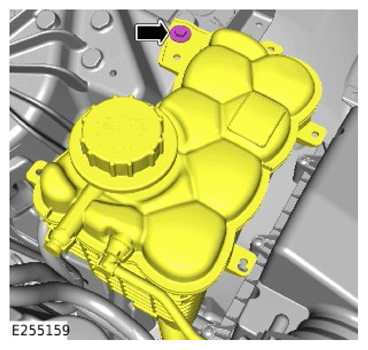

See Figure

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the bolt.
- Reposition the coolant expansion tank to get access to the engine coolant level switch.

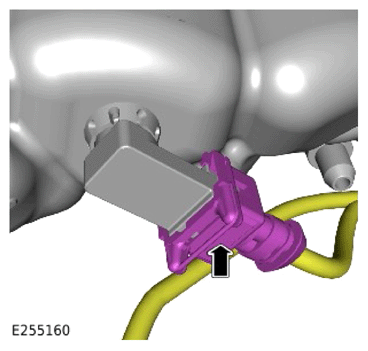

See Figure

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Disconnect the electrical connector.

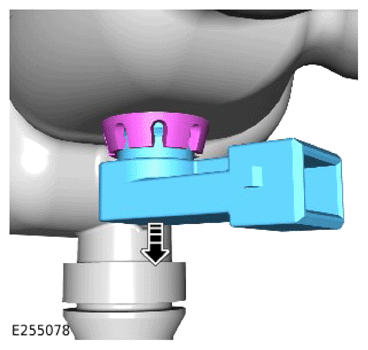

See Figure
CAUTION: Do not use excessive force to remove the coolant level switch. Failure to follow this instruction may result in damage to vehicle.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the engine coolant level switch from the coolant expansion tank.
- Remove the engine coolant level switch.
