Upper Timing Chain - Remove For Access (G2787526): Notes
WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.
| 12.67.04 |
UPPER TIMING CHAIN - REMOVE FOR ACCESS |

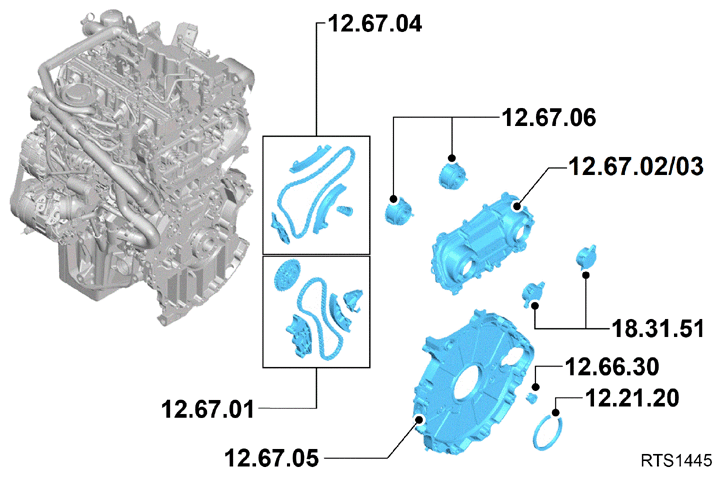

2000 CC, AJ21, DIESEL |
3.10 |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| 12.67.04 |
UPPER TIMING CHAIN - REMOVE FOR ACCESS |

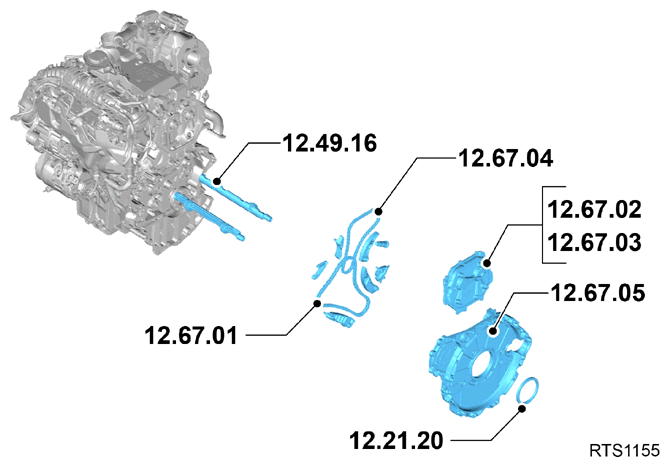

2000 CC, INGENIUM PETROL, IC |
3.50 |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| 12.67.04 |
UPPER TIMING CHAIN - REMOVE FOR ACCESS |
2000 CC, INGENIUM PETROL, PHEV |
4.20 |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| 12.67.04 |
UPPER TIMING CHAIN - REMOVE FOR ACCESS |

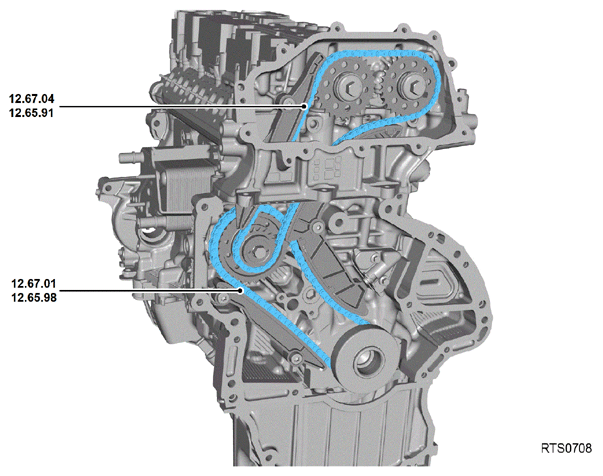

3000 CC, INGENIUM DIESEL |
1.60 |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
| 12.67.04 |
UPPER TIMING CHAIN - REMOVE FOR ACCESS |

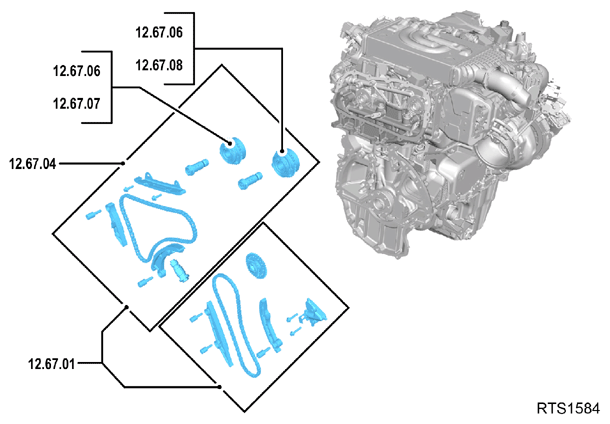

3000 CC, INGENIUM PETROL |
4.10 |
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
