Upper Timing Chain - Remove For Access (G2787526): Installation

The following step(s) applies to:

All vehicles

1. NOTE: Maintain tension on the chain to prevent the coloured link from disengaging with its sprocket position.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

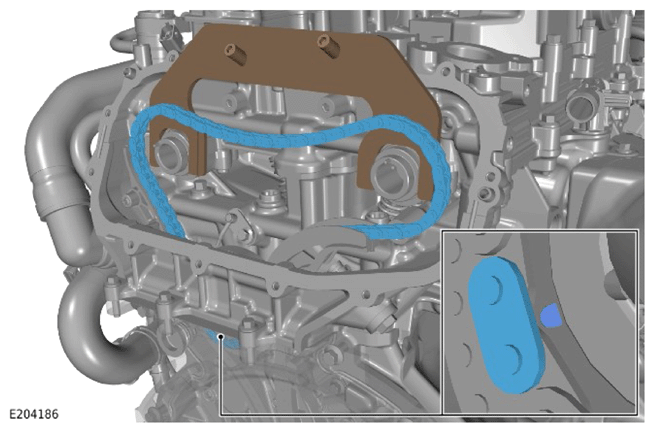

   • Install the upper timing chain.
   • Make sure that the coloured link is aligned as illustrated.
2. CAUTION: Make sure that the upper timing chain does not come off the idler sprocket and stays in the correct position.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

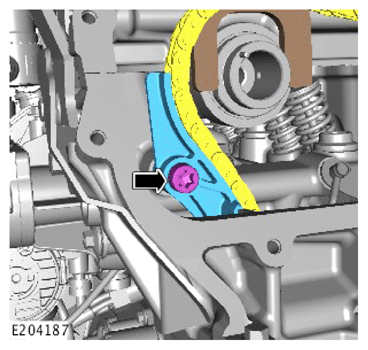

   • Install a new left upper timing chain guide.

     Renew Part: Upper timing chain guide Quantity: 1 .

   • Install and tighten the new bolt.

     Renew Part: Left side timing chain guide bolt Quantity: 1 .

     Torque  : 25 Nm

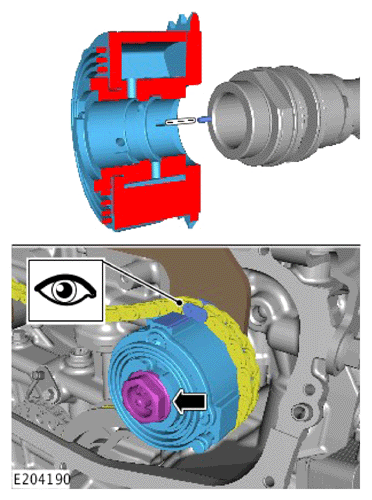

3. CAUTION: Make sure that the upper timing chain does not come off the idler sprocket and stays in the correct position.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

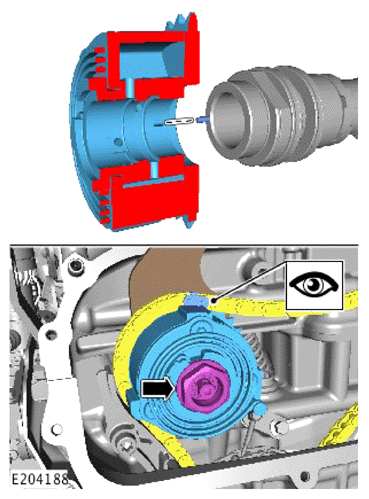

   • Install the intake camshaft VCT  unit. Make sure that the correct VCT  unit is installed as noted in the removal steps.
   • Make sure that the camshaft pin is correctly seated in the VCT  unit as illustrated.
   • Install and tighten a new VCT  unit center bolt.

     Renew Part: Variable camshaft timing actuator bolts Quantity: 1 .

     Torque

     1. Stage 1: 10 Nm
     2. Stage 2: Loosen 90°
   • Check if the highlighted link on the timing chain is aligned with the timing mark on the VCT  unit as illustrated.
4. NOTE: Maintain tension on the chain to prevent the coloured link from disengaging with its sprocket position.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Install a new timing chain tensioner guide.

   Renew Part: Upper timing chain guide Quantity: 1 .

5. CAUTION: Make sure that the upper timing chain does not come off the idler sprocket and stays in the correct position.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Install the exhaust camshaft VCT  unit. Make sure that the correct VCT  unit is installed as noted in the removal steps.
   • Make sure that the camshaft pin is correctly seated in the VCT  unit as illustrated.
   • Install and tighten a new VCT  unit center bolt.

     Renew Part: Variable camshaft timing actuator bolts Quantity: 1 .

     Torque

     1. Stage 1: 10 Nm
     2. Stage 2: Loosen 90°
   • Check if the highlighted link on the timing chain is aligned with the timing mark on the VCT  unit as illustrated.

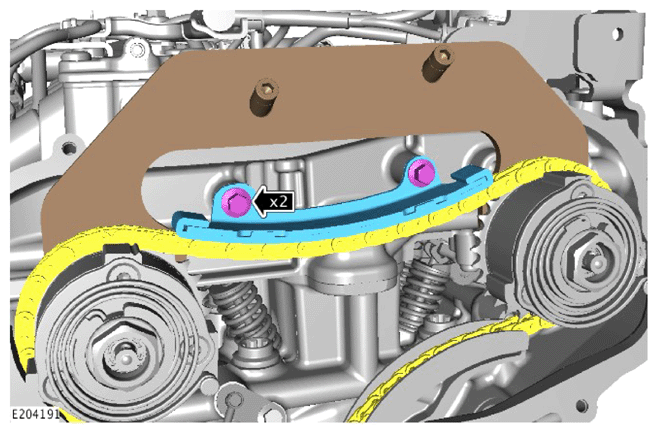

6. CAUTION: Make sure that the upper timing chain does not come off the idler sprocket and stays in the correct position.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   • Install a new upper timing chain guide.

     Renew Part: Upper timing chain guide Quantity: 1 .

   • Install and tighten the 2 bolts.

     Renew Part: Upper timing chain upper guide bolt Quantity: 2 .

     Torque  : 11 Nm

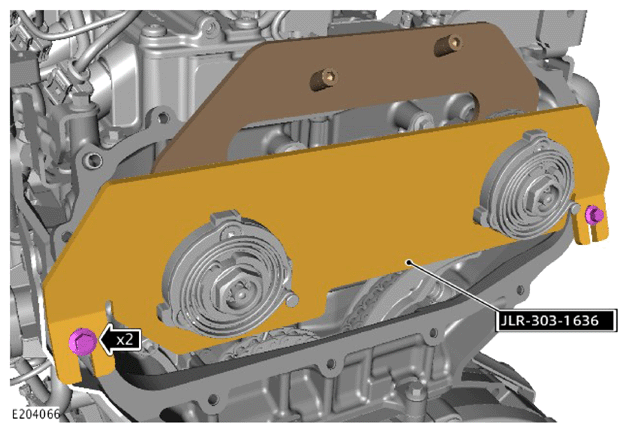

7. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

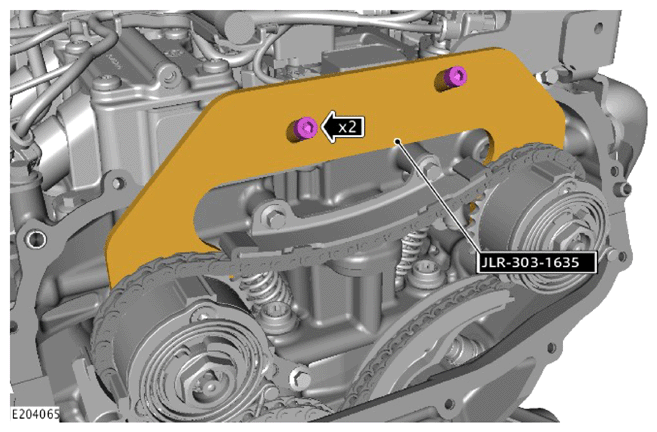

   Install the special tool as illustrated and tighten the bolts.

   Install the Special Tool(s): JLR-303-1636

   Torque  : 13 Nm

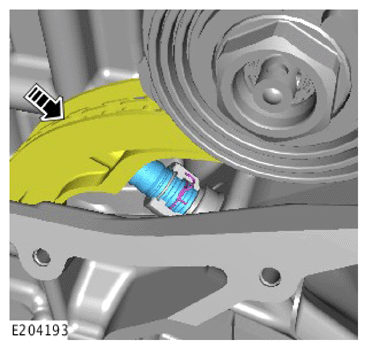

8. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

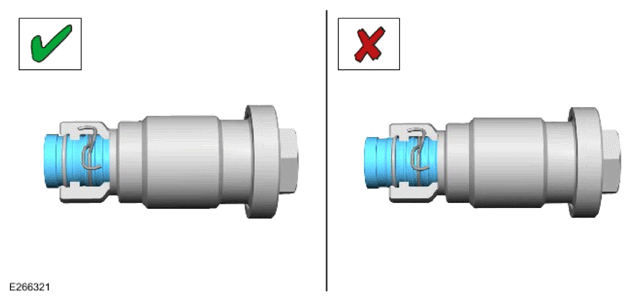

   Inspect if the new timing chain tensioner is in the reset position. The ratchet clip should be in the first groove as illustrated.

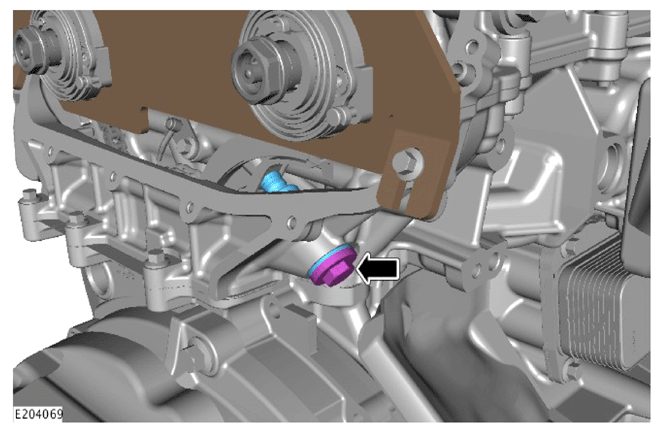

9. CAUTION: Make sure that a new upper timing chain tensioner is installed.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Install and tighten the new timing chain tensioner.

   Renew Part: Upper timing chain tensioner Quantity: 1 .

   Torque  : 55 Nm

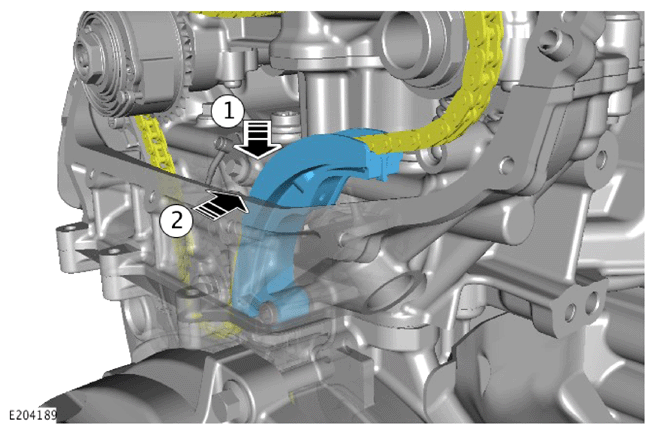

10. CAUTION:

    • Do not directly touch the timing chain tensioner at this stage.
    • Make sure the timing chain tensioner is fully deployed.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    To correctly deploy the timing chain tensioner, push the timing chain guide against timing chain tensioner in the position illustrated.

11. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

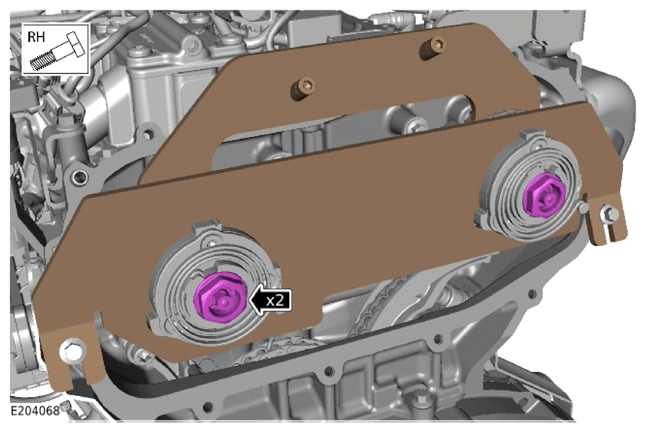

    • Fully tighten the VCT  bolts.

      Torque

      1. Stage 1: 25 Nm
      2. Stage 2: 60°

12. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the special tool.

13. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the special tool.

    The following step(s) applies to:

    Non plug in hybrid electric vehicles only

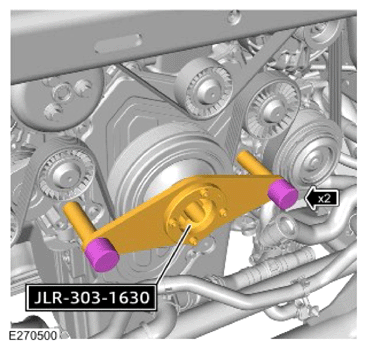

14. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Release the 2 special tool bolts.
    • Remove the special tool JLR-303-1630.

      Special Tool(s): JLR-303-1630

    The following step(s) applies to:

    Plug in hybrid electric vehicles only

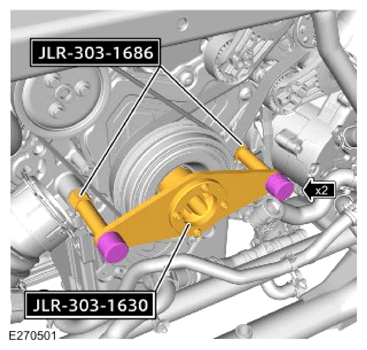

15. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Release the 2 special tool bolts.
    • Remove the special tools JLR-303-1630 and JLR-303-1686.

      Special Tool(s): JLR-303-1630  , JLR-303-1686

    The following step(s) applies to:

    All vehicles

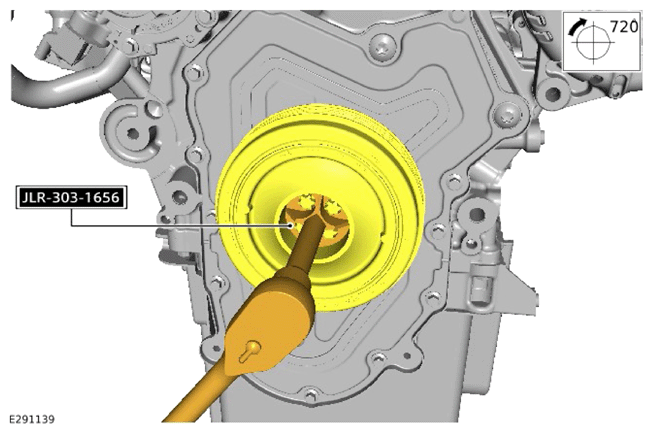

16. NOTE: This step is to make sure that the timing components are properly installed.

    Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Use the special tool JLR-303-1656 to rotate the crankshaft 2 times clockwise.

    Special Tool(s): JLR-303-1656

17. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

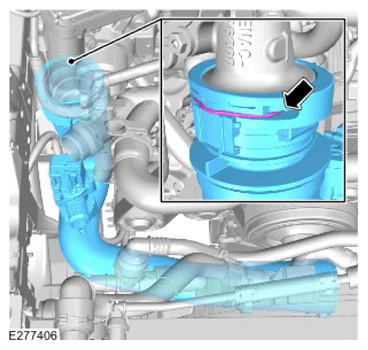

    • Install the charge air cooler intake pipe.
    • Secure the charge air cooler intake pipe retaining clip.

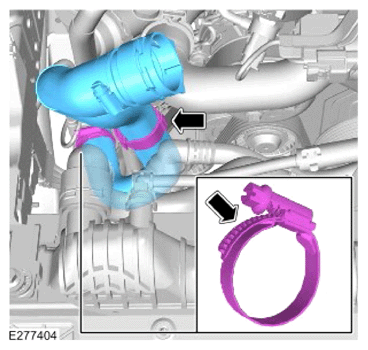

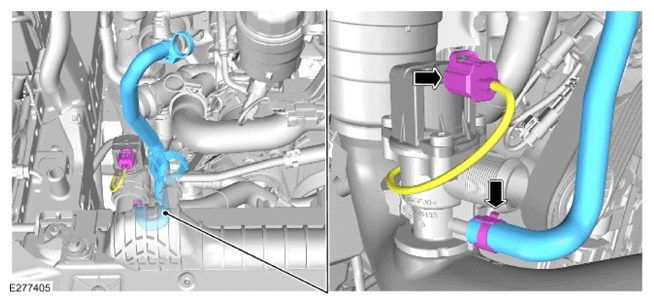

18. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

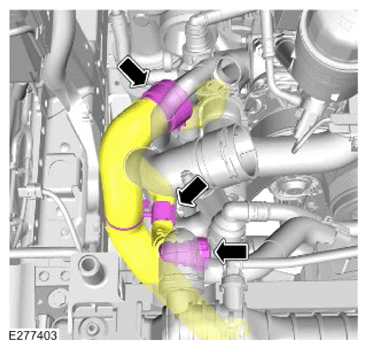

    • Install the hose.
    • Secure the hose clamp.
    • Connect the electrical connector.

19. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Install the hose.
    • Secure the hose clamp.
    • Secure the hose clip.

20. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    • Secure the 2 hose connections.
    • Secure the hose clip.
21. Install the upper timing cover.

    Refer to: UPPER TIMING COVER (G2498222) .

22. Install the charge air cooler.

    Refer to: CHARGE AIR COOLER (G1998338) .

23. Connect the 12 V system.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .

    The following step(s) applies to:

    Plug in hybrid electric vehicles only

24. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Power Up the HV  system. Only technicians qualified to EVAP  level are allowed to perform this procedure. It is mandated that all technicians involved with the steps in this procedure have read and understood the EV  Safety Rules.

    Refer to: PHEV POWER DOWN/UP - COMPLETE VEHICLE - PATHFINDER .
