Oil Pump (G2046497): Removal

WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Be prepared to collect escaping oil.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT (G2623442) .
Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
Remove the oil pan.
Refer to: OIL PAN - RWD (G2043356) .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

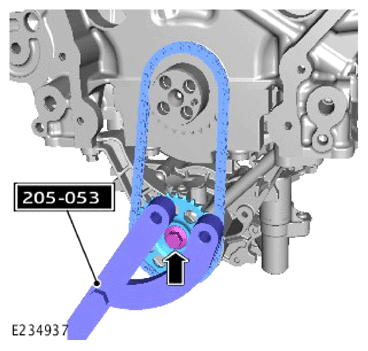

- Using the special tool to hold the oil pump sprocket, remove and discard the bolt.
  Special Tool(s): 205-053
- Remove the oil pump gear.
- Remove the oil pump chain.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

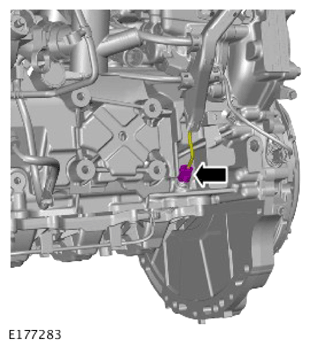

Disconnect the oil pump electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

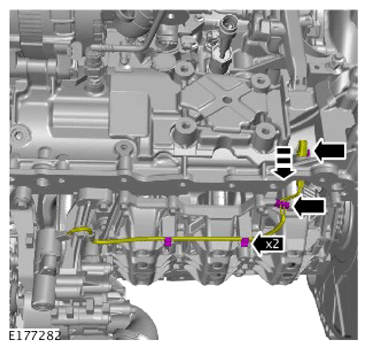

Release the 4 wiring harness retaining clips from the engine.
NOTE: Discard the seal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

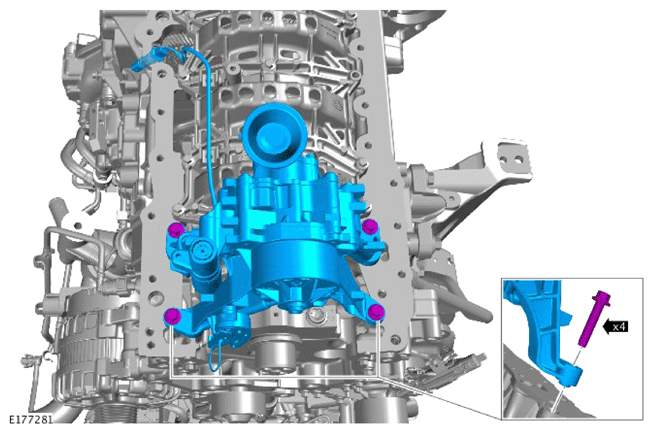

Remove the 4 oil pump retaining bolts and the oil pump.
