Oil Cooler - Vehicles With: PHEV (G2756536): Installation

WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the new gasket.
  Renew Part: Oil cooler gasket Quantity: 1 .
- Install the oil cooler.

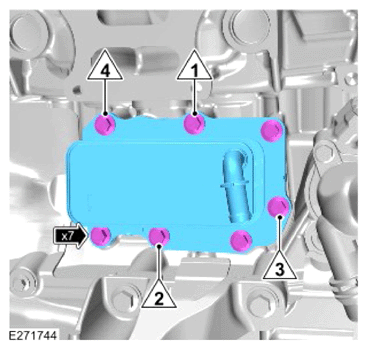

- Install and tighten the 4 bolts in the sequence illustrated.
  Torque : 15 Nm
- Install and tighten the remaining 3 bolts in any sequence.
  Torque : 25 Nm
- Tighten the first 4 bolts.
  Torque : 25 Nm
Connect the oil cooler hose.
Install the turbocharger.
Refer to: TURBOCHARGER (G2270371) .
Connect the 12V system.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
