Oil Cooler (G1997941): Installation

WARNING: This page is about a different car, the 2023 Jaguar F-Pace and 2022 Jaguar F-Pace. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install a new gasket.
  Renew Part: Oil cooler gasket Quantity: 1 .

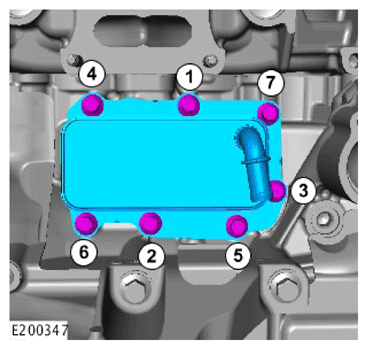

- Install and tighten the bolts in the sequence illustrated.
  Torque
  1. Stage 1: 10 Nm
  2. Stage 2: 25 Nm
Connect the oil cooler hose.
Install the turbocharger.
Refer to: TURBOCHARGER (G2270371) .
