Torque Specifications
NOTE:
Numbers with a green background are a single use component.

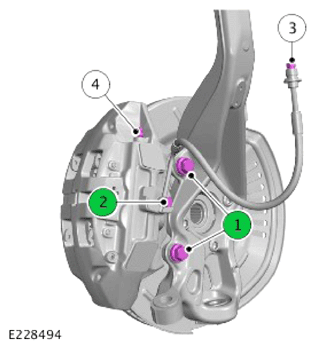

COMPONENT TORQUE LOCATION

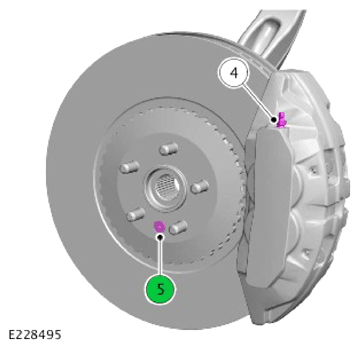

COMPONENT TORQUE LOCATION
TORQUE SPECIFICATION
| DESCRIPTION | NM | LB-FT | |||
|---|---|---|---|---|---|
| 1 | Front brake caliper bolts | Stage 1 - 110 | Stage 2 - 120 degrees | Stage 1 - 81 | Stage 2 - 120 degrees |
| 2 | Brake hose banjo bolt | 32 | 24 | ||
| 3 | Brake hose pipe union | 15 | 11 | ||
| 4 | Front brake caliper bleed screw | 18.5 | 14 | ||
| 5 | Front brake disc retaining bolt | 10 | 7 | ||
| DESCRIPTION | SIZE IN MM |
|---|---|
| Diameter | 395 |
| New thickness | 36 |
| Minimum thickness | 34 |
