Brake Disc - V8 S/C 5.0L Petrol (G2264155): Installation

Clean the brake disc using brake cleaning fluid.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

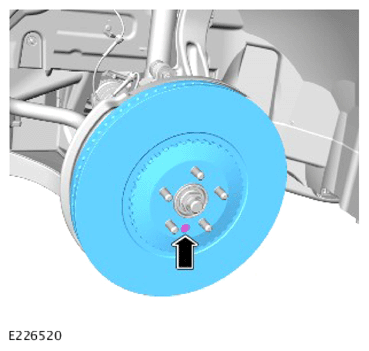

- Install the brake disc.
- Install the bolt.
  Renew Part: Brake disc bolt Quantity: 1

  Torque: 10 Nm
CAUTION: Make sure that the brake hose is not twisted and is correctly routed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

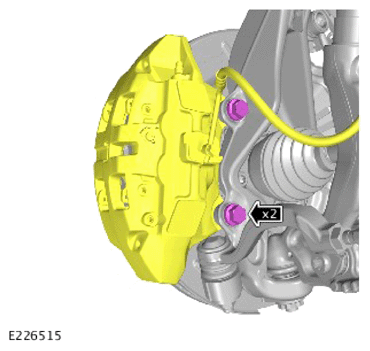

- Install the brake caliper.
- Install and tighten the 2 bolts.
  Renew Part: Brake caliper carrier bolt(s) Quantity: 2 .

  Torque

  Stage 1: 110 Nm

  Stage 2: 120 °
NOTE: The brake pad wear sensor is installed on the left side only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

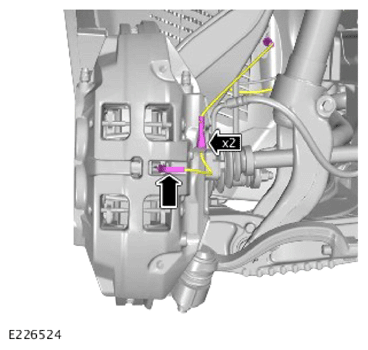

- Secure the 2 grommets.
- Install the brake pad wear sensor.
Install the wheel and tire assembly.
Refer to: WHEEL AND TIRE - V8 S/C 5.0L PETROL .
