Component Torque Location
TORQUE SPECIFICATION
| DESCRIPTION | NM | LB-FT | LB-IN | |
|---|---|---|---|---|

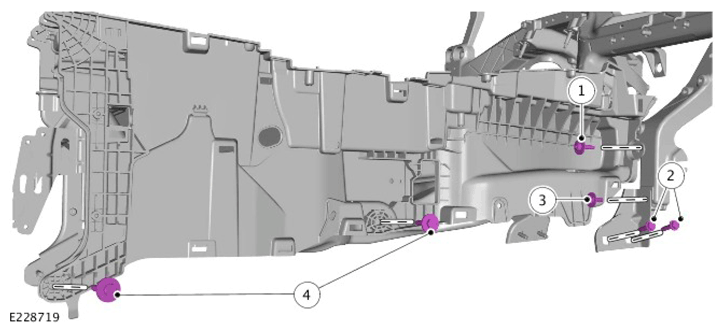

| 1 | Floor console front screw 6 x 23 | 9 | - | 80 |
| 2 | Instrument panel cross car beam lower bracket bolt M6 x 22 | 9 | - | 80 |
| 3 | Instrument panel cross car beam lower bracket bolt M6 x 19 | 9 | - | 80 |
| 4 | Floor console lower bolt M6 x 30 | 9 | - | 80 |

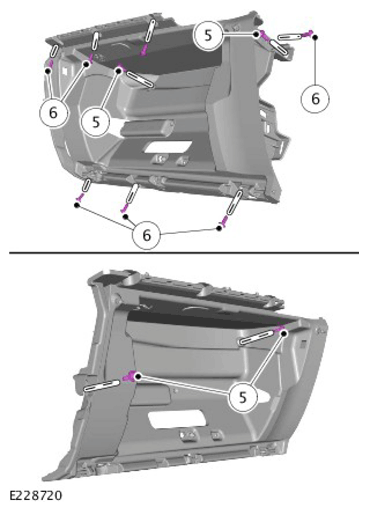

| 5 | Glovebox screw 6 x 17 | 9 | - | 80 |
| 6 | Glovebox bolt M6 x 18 | 9 | - | 80 |

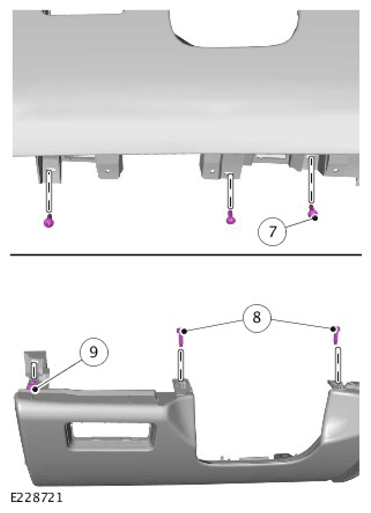

| 7 | Instrument panel lower trim panel bolt M6 x 18 | 5 | - | 44 |
| 8 | Instrument panel lower trim panel upper bolt M6 x 20 | 5 | - | 44 |
| 9 | Instrument panel lower trim panel left upper screw 6 x 17 | 5 | - | 44 |

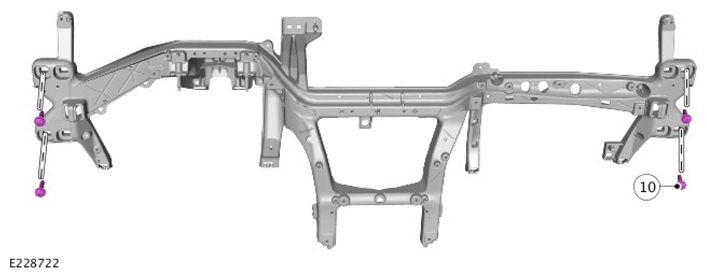

| 10 | Instrument panel cross car beam inner bolt | 20 | 14.7 | - |

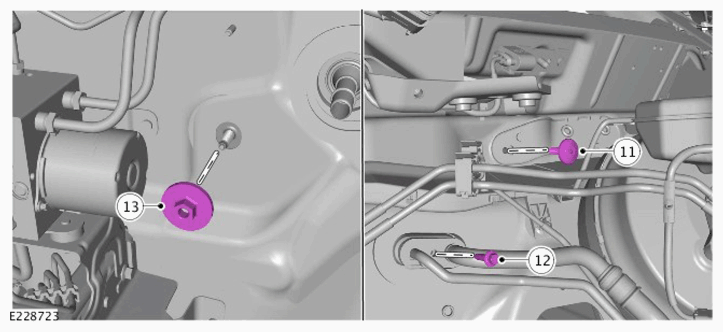

| 11 | Instrument panel cross car beam outer bolt | 20 | 14.7 | - |
| 12 | Air Conditioning (A/C) pipes bolt M6 x 20 | 9 | - | 80 |
| 13 | Heating box outer nut | 20 | 14.7 | - |

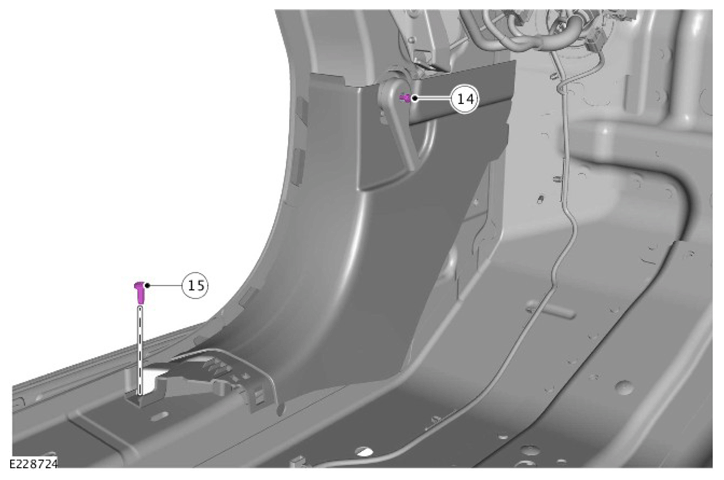

| 14 | Hood release lever screw | 3.5 | - | 31 |
| 15 | A pillar lower trim panel screw 6 x 16 | 3.5 | - | 31 |
