Sunglasses Holder (G2686358): Removal

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Remove the front overhead console.
Refer to: OVERHEAD CONSOLE .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

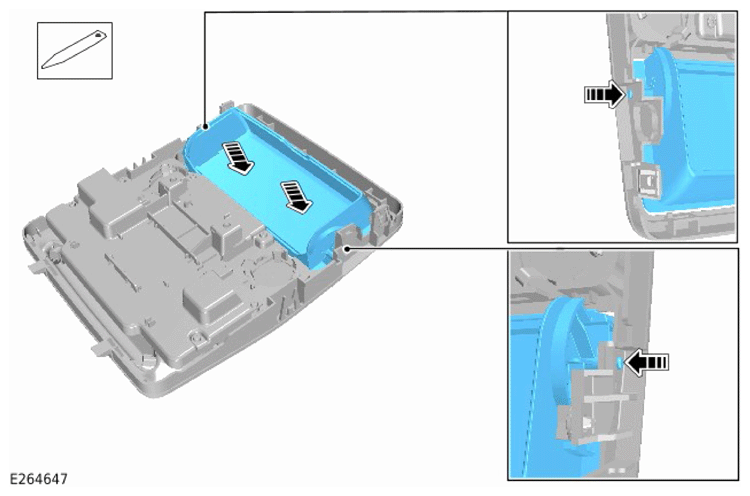

- Release the 4 clips.
- Reposition the 2 clips to allow the cover to be removed.
- Remove the sunglasses holder cover.
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

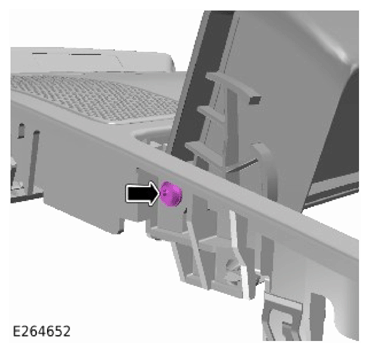

Remove and discard the screw.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the sunglasses holder.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

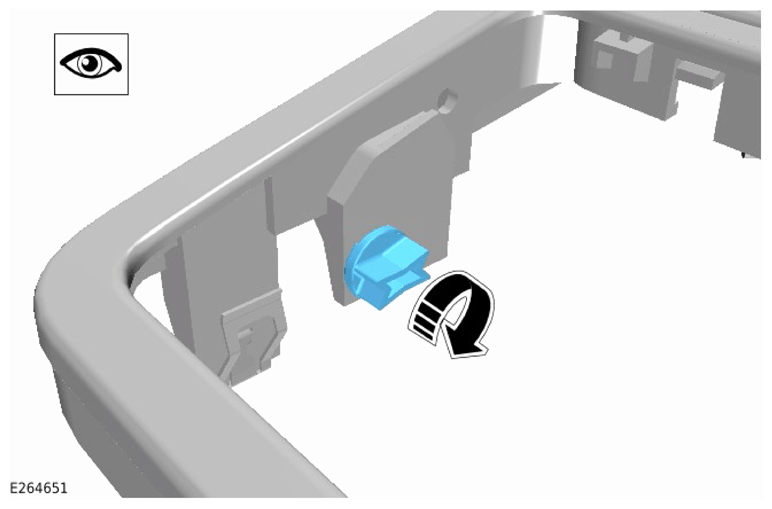

- Rotate the cam latch through 360° and visually inspect for damage.
- If the cam latch is damaged , continue to step 6.
- If the cam latch is missing , continue installation step 1.
- If there is no visible damage , continue to installation step 2.
NOTE: This step is only required if the cam latch is damaged .

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

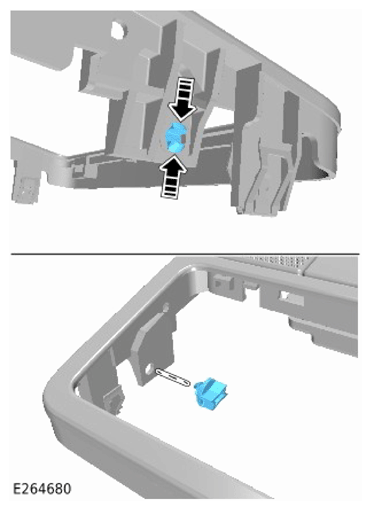

Remove and discard the damaged cam latch.
