In-Vehicle Crossbeam (G1904992): Removal

CAUTION: Take extra care not to damage the wiring harness clips.

NOTE:

Note the position of the wiring harnesses to aid installation.
Some variation in the illustrations may occur, but the essential information is always correct.
Removal steps in this procedure may contain installation details.
Some components shown removed for clarity.

The following step(s) applies to:

All vehicles

Make the SRS system safe.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT .
Raise and support the vehicle.
Refer to: AIR CONDITIONING SYSTEM RECOVERY, EVACUATION AND CHARGING .
NOTE: This procedure must be carried out both sides.

Refer to: FRONT ROW SEAT - INGENIUM I4 2.0L DIESEL/INGENIUM I4 2.0L PETROL/TDV6 3.0L DIESEL/V6 S/C 3.0L PETROL .
Refer to: STEERING COLUMN .
Refer to: INSTRUMENT PANEL CONSOLE .
Refer to: SECONDARY BULKHEAD RIGHT PANEL - TDV6 3.0L DIESEL .
The following step(s) applies to:

Left-hand drive vehicles
Refer to: SECONDARY BULKHEAD LEFT PANEL - TDV6 3.0L DIESEL .

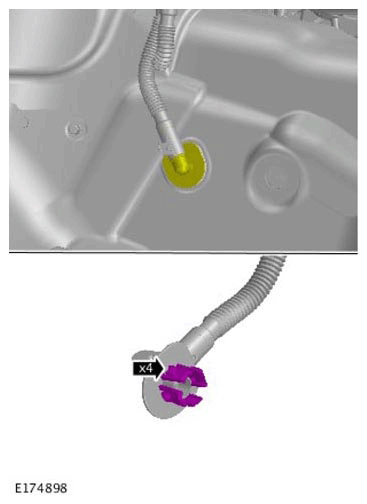

CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The following step(s) applies to:

Right-hand drive vehicles
CAUTION: Be prepared to collect escaping coolant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 9 Nm

The following step(s) applies to:

All vehicles
CAUTION: Make sure that the component is correctly located on the locating dowels.
NOTE:
- Install new retaining clips.
- The step must be carried out on both sides.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Treadplate clips Quantity: 8.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 3.5 Nm
NOTE: The step must be carried out on both sides.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 3.5 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: The step must be carried out on both sides.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: The step must be carried out on both sides.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 1.5 Nm
NOTE: The step must be carried out on both sides.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 9 Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: The step must be carried out on both sides.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 20 Nm
NOTE:
- Do not disassemble further if the component is removed for access only.
- Note the fitted position of the locating pegs.

G11452794

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
